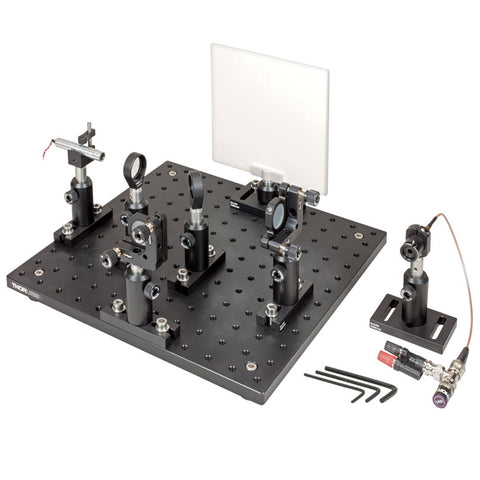

TH-EDU-BT1/M - Bomb Tester Demonstration Kit, Metric
TH-EDU-BT1-M - Bomb Tester Demonstration Kit, Metric
| Underlying Concept | Explore the "Bomb Tester" Thought Experiment with an Analogy Demonstration |
| Light Sources | Laser (Class 2) |
| Breadboard | Aluminum Breadboard, 12" x 12" (30 cm x 30 cm) |
| Other Accessories |
Detector for Measuring the Probability of Different States in the Analogy Experiment |
| Educational Aspects |
|
| Included Components | |
|---|---|
| Description | Qty. |
| Green Laser Module | 1 |
| 5 VDC Power Supply for Laser | 1 |
| Small V-Clamp | 1 |
| Ø1" Bi-Convex Lens, 75 mm Focal Length |
1 |
| Ø1" Fixed Lens Mount | 2 |
| SM1 Retaining Ring | 1 |
| Ø1" 50:50 Beamsplitter | 1 |
| Ø1" Protected Aluminum Mirror | 2 |
| Ø1" Adjustable Mirror Mount | 2 |
| Viewing Screen | 1 |
| Internally SM05-Threaded Lever Actuated Iris Diaphragm | 1 |
| 1" Long SM05 Lens Tube | 1 |
| Silicon Photodiode, 350 - 1100 nm (Inside Lens Tube) |
1 |
| Ø1/2" Slim Slip Ring | 1 |
| 12" Long Coaxial Cable | 1 |
| BNC T-Adapter | 1 |
| 100 k? Fixed BNC Terminator | 1 |
| BNC Female to Binding Post | 1 |
| Ø1/2" (Ø12.7 mm) Mounting Post, 2" (50 mm) Long |
6 |
| Ø1/2" (Ø12.7 mm) Postholder, 2" (50 mm) Long |
6 |
| Ø1/2" (Ø12.7 mm) Mounting Post, 3/4" (20 mm) Long |
1 |
| Ø1/2" (Ø12.7 mm) Postholder, 1" (20 mm) Long |
1 |
| Mounting Base, 1" x 3" x 3/8" (25 mm x 58 mm x 10 mm) |
5 |
| Mounting Base, 2" x 3" x 3/8" (50 mm x 75 mm x 10 mm) |
2 |
| Aluminum Breadboard, 12" x 12" (30 cm x 30 cm) |
1 |
| Rubber Breadboard Feet | 4 |
