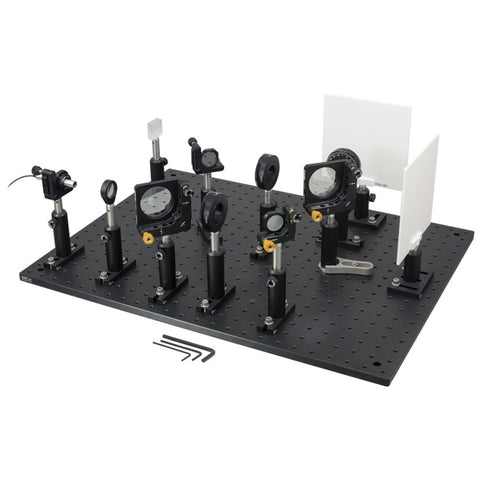

TH-EDU-QE1/M - Quantum Eraser Demonstration Kit, Metric
TH-EDU-QE1-M - Quantum Eraser Demonstration Kit, Metric
| Underlying Concept | Explore the Dual Particle/Wave Nature of Light with an Analogy Demonstration |
| Light Sources | Laser (Class 2) |
| Breadboard | Aluminum Breadboard, 18" x 24" (45 cm x 60 cm) |
| Other Accessories |
Polarizers to Observe the Effect of Polarization on the Interference Pattern |
| Educational Aspects |
|
| Included Components | |
|---|---|
| Description | Qty. |
| Green Laser Module | 1 |
| 5 VDC Power Supply for Laser | 1 |
| Kinematic Ø1" Mirror Mount | 3 |
| Ø2" (50.8 mm) Unthreaded Adapter for Ø11 mm Cylindrical Components | 1 |
| Ø1" Bi-Convex Lens, 75 mm Focal Length |
1 |
| Ø1" Fixed Lens Mount | 1 |
| Ø2" 50:50 Beamsplitter | 2 |
| Ø2" Adjustable Beamsplitter Mount | 2 |
| Linear Polarizing Film (Cut into Three Ø1" Circles) |
1 |
| Rotation Mount for Ø1" Optics | 3 |
| Ø1" Aluminum Mirror | 2 |
| Observation Screen | 2 |
| Ø1/2" (Ø12.7 mm) Mounting Post, 3" (75) mm Long | 10 |
| Ø1/2" (Ø12.7 mm) Mounting Post, 2" (50 mm) Long | 2 |
| Ø1/2" (Ø12.7 mm) Post Holder, 3" (75 mm) Long |
9 |
| Ø1/2" (Ø12.7 mm) Post Holder, 2" (50 mm) Long |
2 |
| Ø1/2" (Ø12.7 mm) Pedestal Post Holder, 3.19" (80.9 mm) Long | 1 |
| Mounting Base, 1" x 3" x 3/8" (25 mm x 58 mm x 10 mm) |
8 |
| Small Mounting Base, 1" x 2.3" x 3/8" (25 mm x 58 mm x 10 mm) | 1 |
| Mounting Base, 2" x 3" x 3/8" (50 mm x 75 mm x 10 mm) |
2 |
| Clamping Fork 1.24" (31.5 mm) Counterbored Slot | 1 |
| Acrylic Alignment Tool, 1.18" x 1.18" (30.0 mm x 30.0 mm) | 1 |
| Aluminum Breadboard, 18" x 24" (45 cm x 60 cm) |
1 |
| Rubber Breadboard Feet (Not Shown) |
4 |
| Ø1" Retaining Ring | 1 |
| Gold Colored Adjustment Knobs | 4 |
| SM1 Spanner Wrench, 1" (25.4 mm) Long |
1 |
