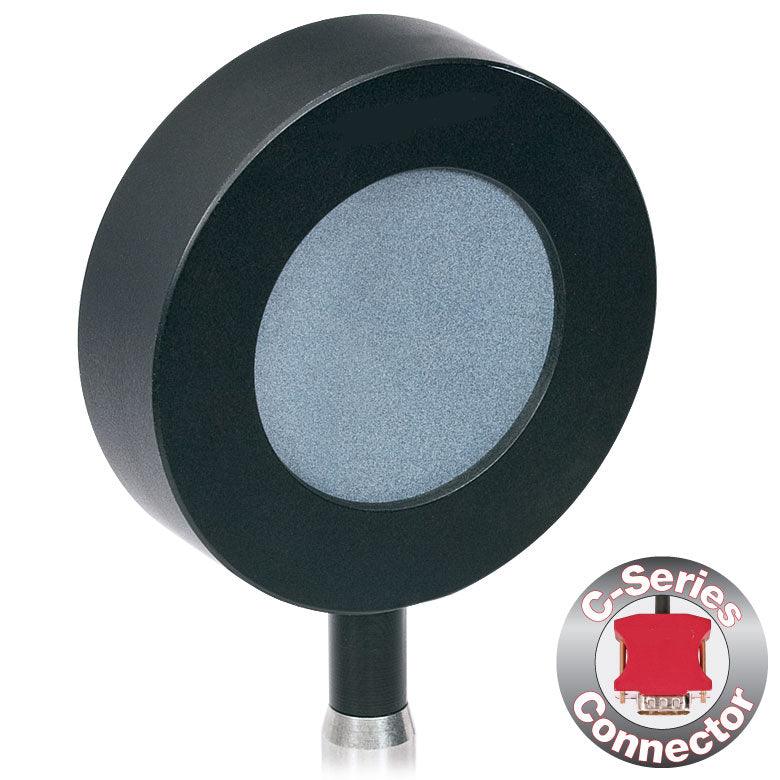

TH-ES245C - Pyroelectric Energy Sensor, Ceramic Coating, 0.185 - 25 µm, 15 J, Ø45 mm, 30 Hz
TH-ES245C - Pyroelectric Energy Sensor, Ceramic Coating, 0.185 - 25 µm, 15 J, Ø45 mm, 30 Hz
| Mechanical Specs | |
| Sensor Dimensions | Ø75 mm x 21 mm |
| Active Detector Area | 1590.4 mm2 |
| Input Aperture Size | Ø45 mm (1.77") |
| Distance to Detector | 2 mm (0.08") |
| Cable Length | 1.5 m (60") |
| Connector | BNC Male / Sub-D 9-pin Male, Adapter Included |
| Weight | 0.32 kg |
| Mounting and Accessories | |
| Post | 8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage System Mounting | N/A |
| Aperture Thread | N/A |
| General Information | ||
| Coating | Ceramic | |
| Cooling | Convection | |
| Technical Specs | |
| Detector Type | High-Energy Pyroelectric Energy Sensor |
| Wavelength Range | 185 nm - 25 µm |
| Optical Energy Range | 1 mJ - 15 J |
| Max Repetition Rate (@ 1 MΩ Load) |
30 Hz |
| Max Power Density (Pulse Width) |
65 MW/cm2 (7 ns Pulse @ 355 nm) |
| Max Pulse Energy Density (Pulse Width) |
0.45 J/cm2 (7 ns Pulse @ 355 nm) |
| Max Average Power | 10 W |
| Resolution | 50 µJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 185 nm - 25 µm |
| Thermal Time Constant | 20 ms |
| Resolution | 50 µJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 0.185 - 25 µm |
| Housing Dimensions | Ø75 mm x 21 mm |
| Active Detector Area | 1590.4 mm2 |
| Cable Length | 1.5 m (60") |
| Post Mounting | 8-32 Mounting Thread, 8-32 and M4 Insulating Adapters Included |
| Cage Mounting | N/A |
| Input Aperture Size | Ø45 mm |
| Wavelength Range | 0.185 - 25 µm |
| Energy Range | 1 mJ - 15 J |
| Max Repetition Rateb | 30 Hz |
| Max Power Density (Pulse Width) |
65 MW/cm2 (7 ns Pulse @ 355 nm) |
| Max Pulse Energy Density (Pulse Width) |
0.45 J/cm2 (7 ns Pulse @ 355 nm) |
