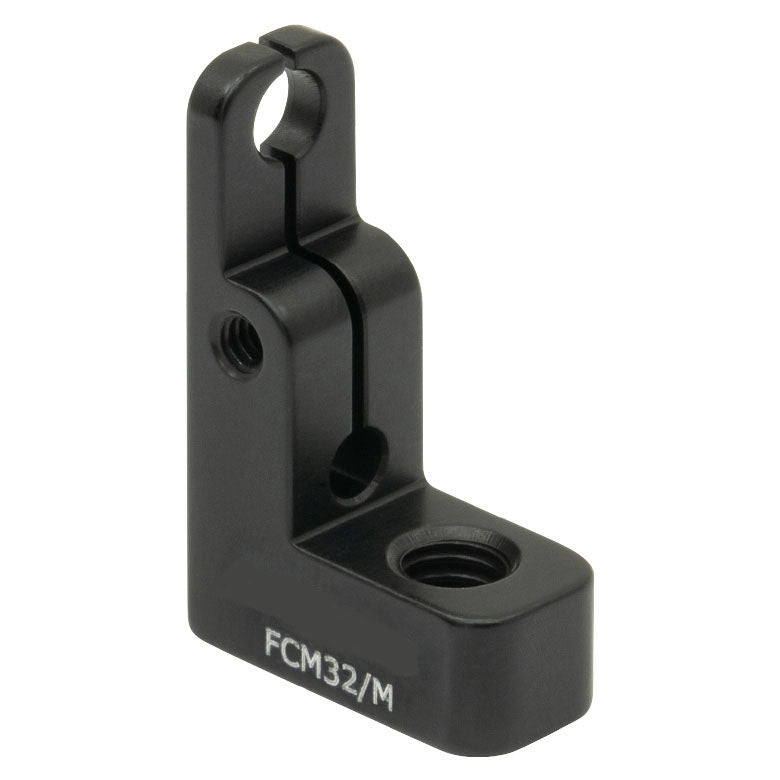

TH-FCM32-M - Post-Mountable Ø3.2 mm Ferrule Clamp, M4 Tap
TH-FCM32-M - Post-Mountable Ø3.2 mm Ferrule Clamp, M4 Tap
- Compact Flexure Clamps for Ø1.25 mm, Ø2.5 mm, Ø3.2 mm, or Ø3.4 mm Ferrules
- 8-32 (M4) Tapped Mounting Hole
- Compatible with Ø 1/2: Optical Posts
These Post-Mountable Ferrule Clamps allow fiber connectors to be mounted securely and compactly within an experimental setup. See the table below for compatible ferrule diameters and fiber connectors for each clamp. The fiber ferrule is clamped into the flexure mount using a 5/64" (2 mm) hex key. An 8-32 (M4) tapped hole on the bottom of the mount provides compatibility with our Ø1/2" optical posts.
| Item # | Compatible Component Diameter | Compatible Components |
|---|---|---|
| FCM13(/M) | 1.25 mm (0.05") | Ø1.25 mm Ferrules |
| FCM(/M) | 2.5 mm (0.10") | Ø2.5 mm Ferrules, FC/PC, FC/APC, SC/PC, and ST®a/PC Connectors |
| FCM32(/M) | 3.2 mm (0.13") | SMA Connectors |
| FCM34(/M) | 3.4 mm (0.14") | GRIN Collimators |
