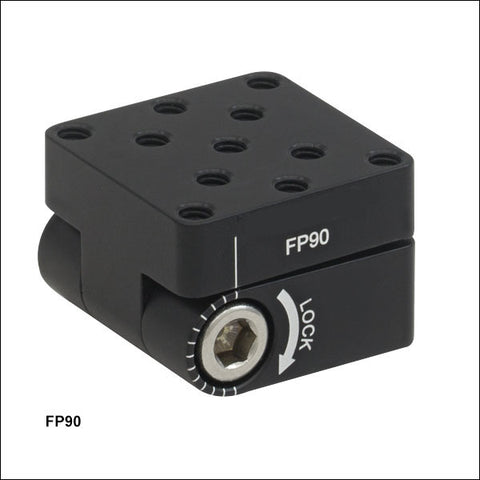

TH-FP90 - Adjustable Flip Platform, 8-32 Taps
- Designed for 90° Angular Adjustment
- Up to 180° Adjustment Range in Certain Configurations
- Side-Located Locking Cap Screw with 3/16" (5 mm) Hex
- 1.25" x 1.25" Mounting Platform with Eleven 8-32 (M4) Tapped Holes
- 8-32 (M4) Mounting Tap on the Side of Each Plate
- Four 8-32 Tapped Holes on the Bottom Plate for Additional Mounting Options
- Engraved Tick Marks in 15° Increments
