TH-FTS4 - Three-Hole Stripping Tool for Fiber Buffers and Jackets

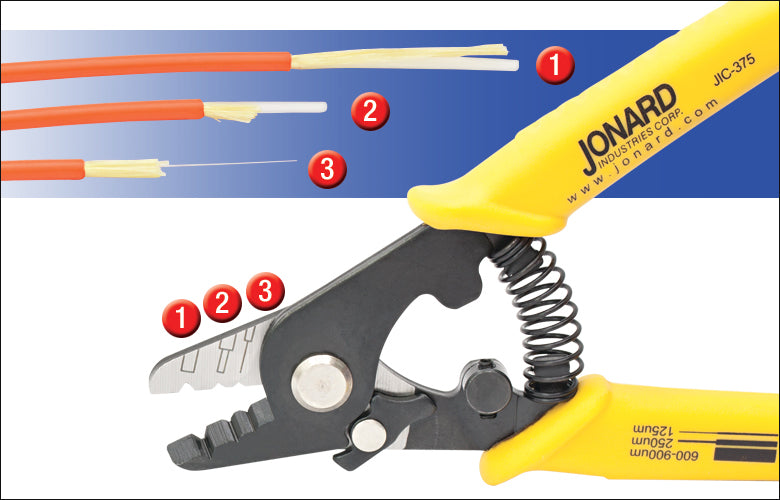

The TH-FTS4 Fiber Stripping Tool is capable of stripping the fiber jacket (furcation tubing), fiber buffer, and fiber coating. The first hole, indicated by the 1 in the photo to the right, strips the Ø1.6 mm - Ø3 mm fiber jacket down to the Ø600 µm - Ø900 µm buffer coating. The second hole strips the Ø600 µm - Ø900 µm buffer down to the Ø250 µm coating. The third hole is used to strip the Ø250 µm cable down to the glass fiber without nicks or scratches.

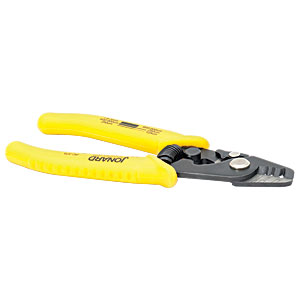

The handle is made of thermoplastic rubber and the tool is 6" (15 cm) long from the tip of the blade to the end of the handle. This fiber stripper is preset at the factory and cannot be adjusted or calibrated. The stripping tool should be periodically checked for proper operation and can be cleaned with dry compressed air to remove debris from the openings.
