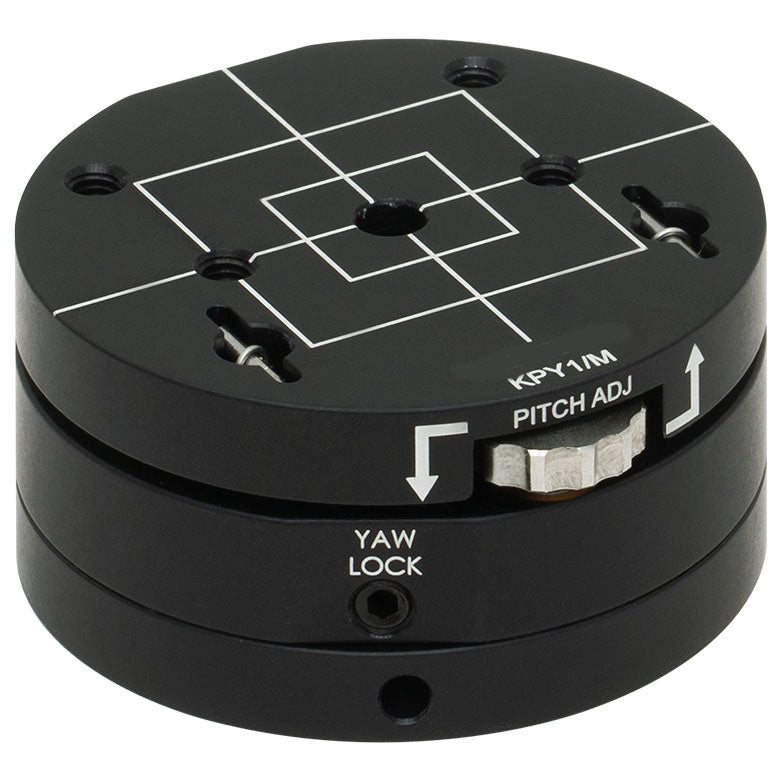

TH-KPY1-M - Kinematic Pitch/Yaw Mount, Ø50.8 mm Platform, M4 Threaded Holes, M4 & M6 Clearance Holes
TH-KPY1-M - Kinematic Pitch/Yaw Mount, Ø50.8 mm Platform, M4 Threaded Holes, M4 & M6 Clearance Holes
| Mounting Features | |||
|---|---|---|---|
| Item # | Top Plate | Base Plate | |
| TH-KPY1-M | 8-32 (M4), 0.30" (7.6 mm) Depth (2 Places) 6-32 (M4), 0.30" (7.6 mm) Depth (2 Places) #8 (M4) Clearance Hole |
1/4" (M6) Clearance Hole | |
