TH-L490-M - 7" x 4" Lab Jack, 2.26" Vertical Travel, 75 lbs Load Capacity, M6 Taps

Fosco Connect Part No.: TH-L490-M

  • $ 1,150.00 or



TH-L490-M - 7" x 4" Lab Jack, 2.26" Vertical Travel, 75 lbs Load Capacity, M6 Taps

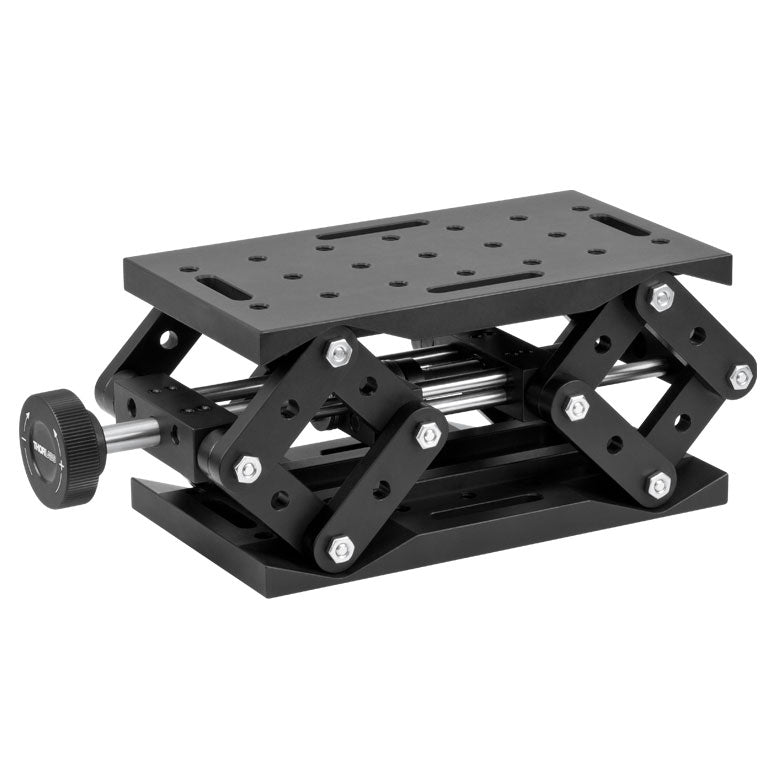

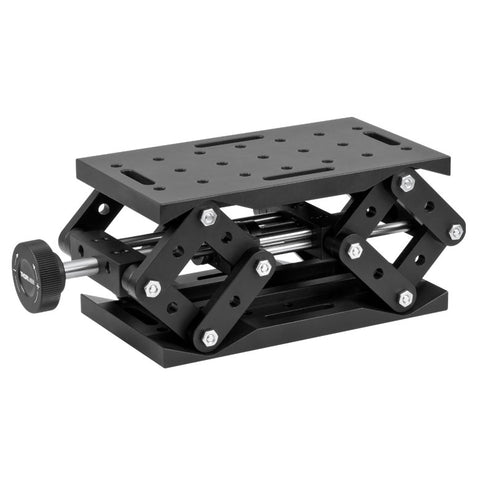

The TH-L490(-M) Lab Jack utilizes a dual-pantograph design which offers excellent rigidity. The adjustment mechanism uses a lead screw to close the angle between the opposing pairs of supporting struts. Stainless steel axles and connecting rods allow loads of up to 75 lbs (34 kg) to be smoothly elevated over the full range of the L490. The top and bottom plates each have an array of nineteen 1/4"-20 (M6) tapped mounting holes on 1" (25 mm) centers. Mounting slots are provided on the top and bottom plates.

Product Specification Sheet
