TH-LT240P-B - Collimation Tube with Optic for Ø5.6 and Ø9 mm Laser Diodes, f = 8.00 mm, NA = 0.50, AR Coated: 650 - 1050 nm

Fosco Connect Part No.: THLT240P-B

  • $ 285.00 or



TH-LT240P-B - Collimation Tube with Optic for Ø5.6 and Ø9 mm Laser Diodes, f = 8.00 mm, NA = 0.50, AR Coated: 650 - 1050 nm

  • Lens Mount with Collimating Optic for our Laser Diode Sockets with Strain Relief Cables
  • 13/32"-40 Threaded Retaining Ring Secures Ø5.6 mm or Ø9 mm Laser Diode
  • Aspheric Collimation Optic that is AR Coated for 650 - 1050 nm

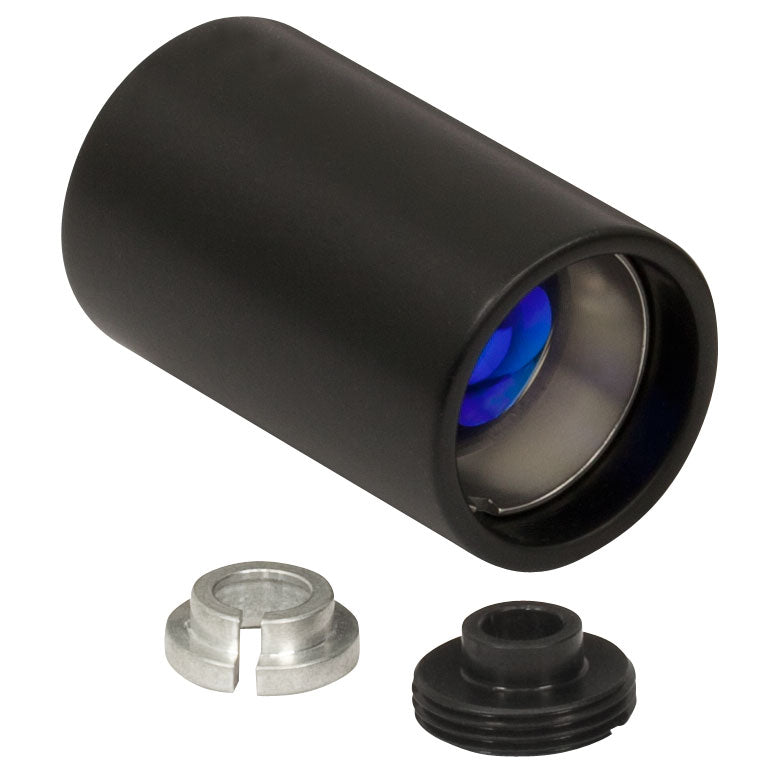

  • Includes Main Tube, Optic, Retaining Ring, Rubber O-Ring, and Adapter for Ø5.6 mm Diode Packages

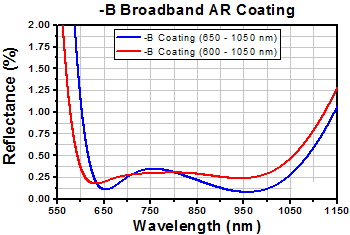

  • AR Coating Range 650 - 1050 nm
  • Effective Focal Length 8.00 mm
  • Numerical Aperture 0.50
  • Package Length 0.95" (24 mm)

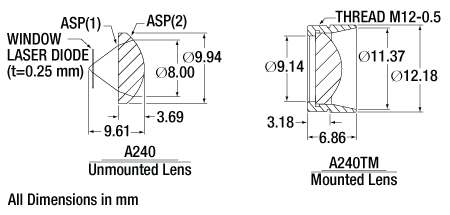

Product Drawing
