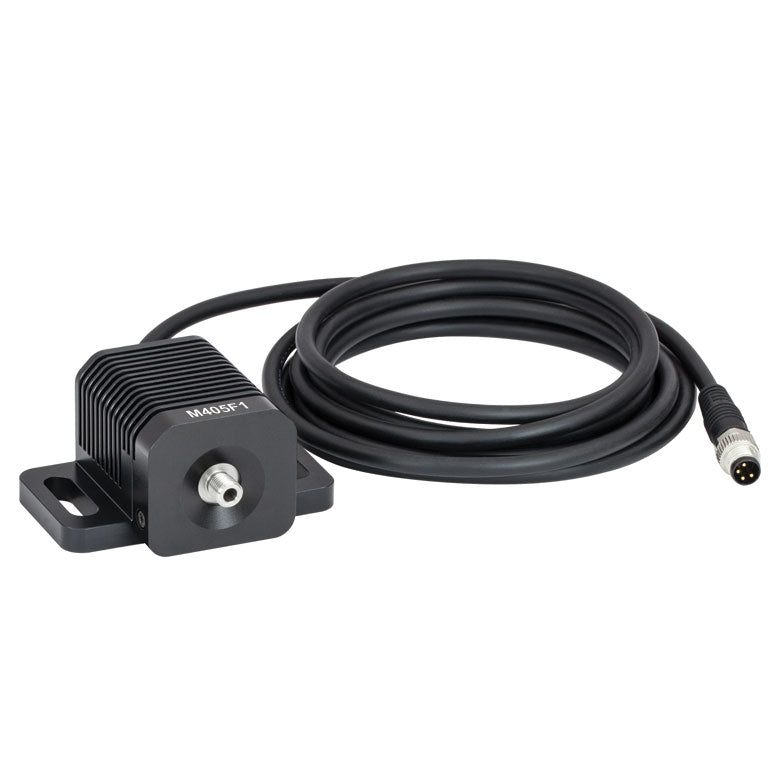

TH-M405F1 - 405 nm, 3.0 mW (Min) Fiber-Coupled LED, 500 mA, SMA
TH-M405F1 - 405 nm, 3.0 mW (Min) Fiber-Coupled LED, 500 mA, SMA
Roll over image to zoom in Click on image to zoom
TH-M405F1 - 405 nm, 3.0 mW (Min) Fiber-Coupled LED, 500 mA, SMATH-M405F1 - 405 nm, 3.0 mW (Min) Fiber-Coupled LED, 500 mA, SMA

TH-M405F1 - 405 nm, 3.0 mW (Min) Fiber-Coupled LED, 500 mA, SMA

Fosco ConnectSKU: THM405F1
Price:
$ 752.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-M405F1 - 405 nm, 3.0 mW (Min) Fiber-Coupled LED, 500 mA, SMA

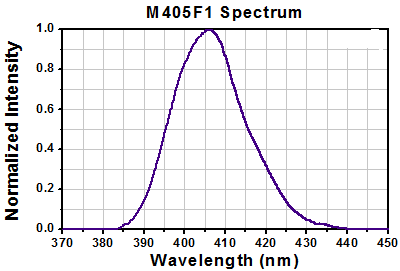

Wavelength 405nm

Typical Opsin mmilCFP, hcriGFP

Output Power 3.7 mW

Color UV

Typical Ø200 µm Core Fiber Output Power 0.93 mW

Minimum Ø400 µm Core Fiber Output Power 3.0 mW

Typical Ø400 µm Core Fiber Output Power 3.7 mW

Maximum Current (CW) 500 mA

Forward Voltage 3.6 V

Bandwidth (FWHM) 12 nm

Typical Lifetime >10 000 h

Product Drawing
