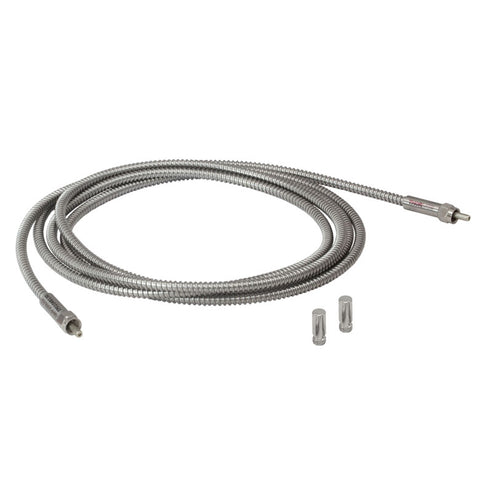

TH-MHP200L02 - Ø200 µm Core, 0.22 NA, High Power SMA Patch Cable, 2 m

Product Drawing

• Designed for High-Power Free-Space-to-Fiber Applications

• Utilizes Air-Gap-Ferrule Technology
• Low-OH Fiber with 0.22 NA
• Operating Wavelength Range: 400 to 2200 nm
• FT05SS Ø5.0 mm Outer Diameter Stainless Steel Protective Tubing
• Polished End Faces
• • Maximum Beam Power: 50 W @ 980 nm
  • Maximum Power Density: 50 kW/cm² @ 980 nm
• Operating Temperature: -50 °C to 130 °C

Core Diameter 200 ± 8 µm

Cladding Diameter 240 ± 5 µm

Coating^a Diameter 260 ± 6 µm

Buffer^a Diameter 400 ± 30 µm

Short-Term Bend Radius^b   23 mm

Long-Term Bend Radius^b  24 mm

Jacket Ø5 mm Stainless Steel

Operating Temperature -50 °C to 130 °C
