TH-MS103 - Adapter Plate, Optic Mounts to MS Series Translation Stages, Imperial
TH-MS103 - Adapter Plate, Optic Mounts to MS Series Translation Stages, Imperial

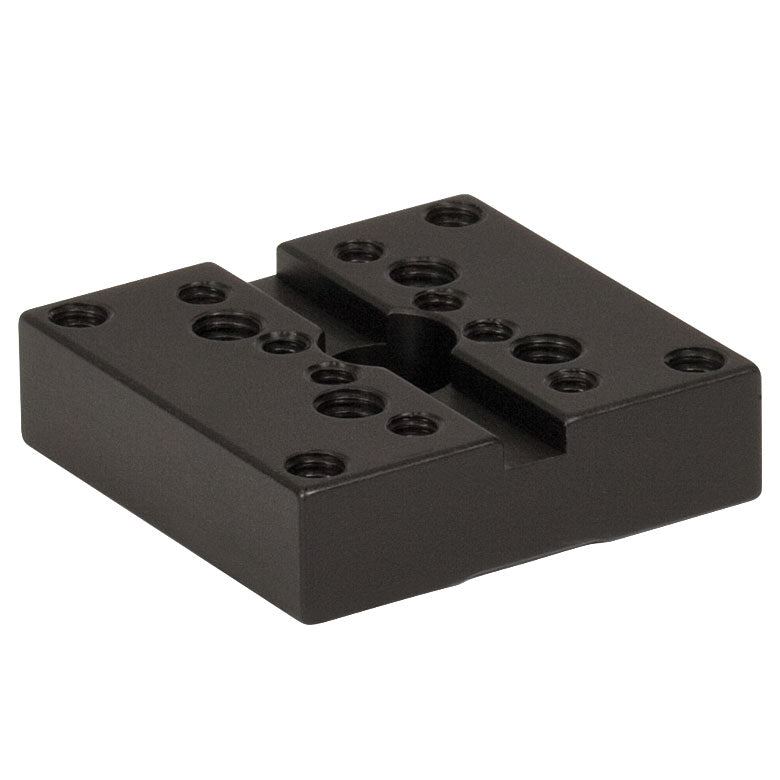

The TH-MS103(-M) adapter plate has a central #8 (M4) through hole to secure the plate to the TH-MS1(-M) translation stage. The four precision machined dowel holes on the underside of the plate allow the MS103 adapter to be mounted so that the key way on the top surface is either orthogonal or parallel, within 2 mrad, to the direction of the translation if the dowel pins are used. Two hardened steel alignment dowel pins are included with TH-MS103(-M). The CT series of mounts are designed to fit into the keyway on the TH-MS103 adapter plate, thus ensuring the orientation of the mounted component. The metric version can be identified by a small dimple on the underside of the plate located next to the central bore, shown in the photo to the right.
