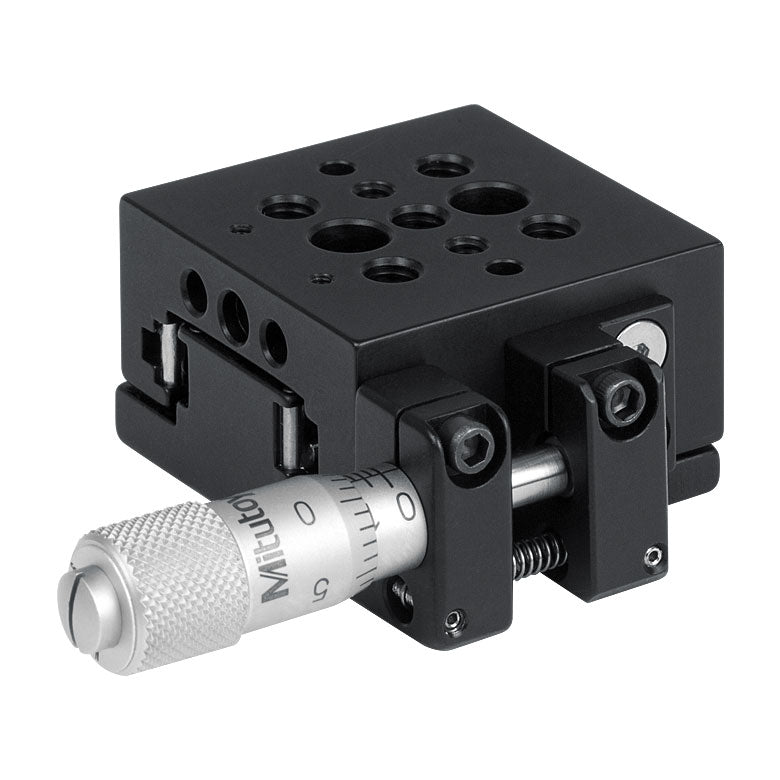

TH-MS1S - 1/4" Travel Single-Axis Translation Stage with Side-Mounted Micrometer, 8-32 Taps
TH-MS1S - 1/4" Travel Single-Axis Translation Stage with Side-Mounted Micrometer, 8-32 Taps
- Side-Mounted Micrometer
- Lockable
- XYZ Configurable
| Item # | MS1S |
|---|---|
| Drive Type | Micrometer; Provides 0.025" (0.5 mm) per Rev |
| Stage Height | 0.73" (18.4 mm) |
| Horizontal Load | 7 lbs (3.2 kg) (Max) |
| Vertical Load | 2.5 lbs (1.1 kg) (Max) |
| Maximum Stage Travel | 1/4" (6.5 mm) |
| Orthogonality | <2 mrad (with Alignment Pins) |
| Bearing Type | Ball Bearing |
| Material | Aluminum with Hardened Steel Dowel Pins |
