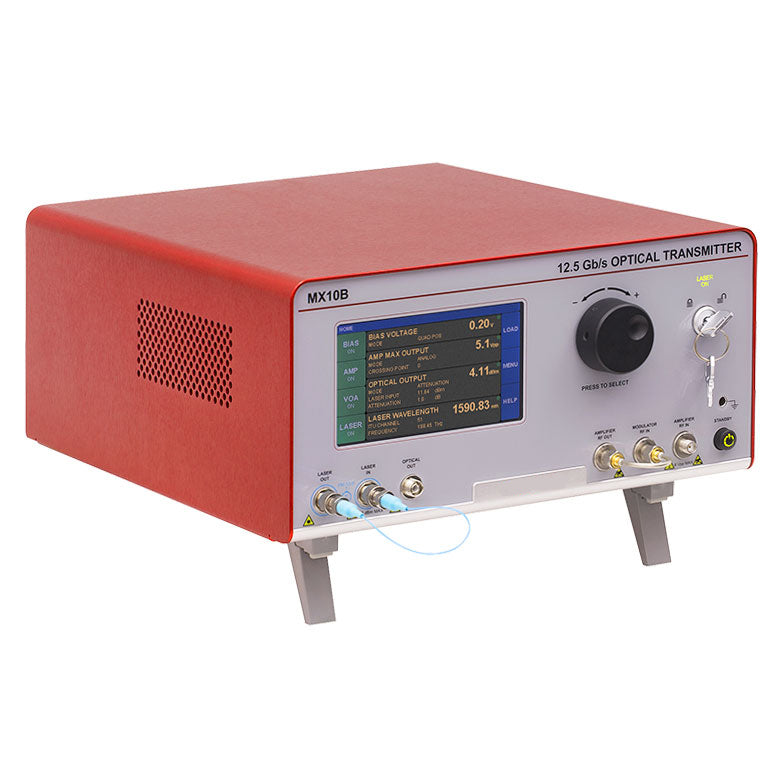

TH-MX10B - 12.5 Gb/s Max Digital Reference Transmitter, C-Band Laser, Limiting Amplifier
TH-MX10B - 12.5 Gb/s Max Digital Reference Transmitter, C-Band Laser, Limiting Amplifier

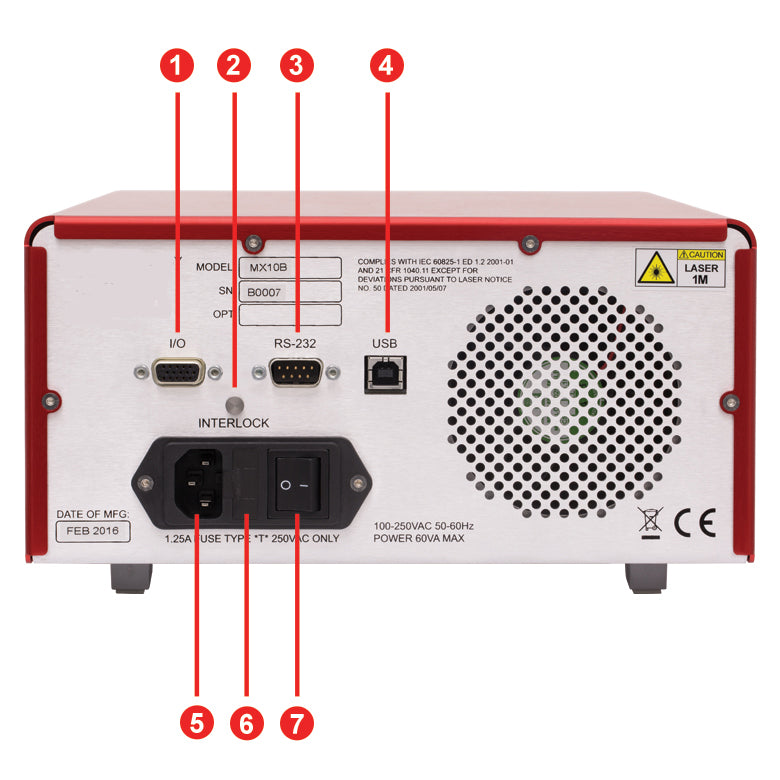

| Back Panel of all Reference Transmitters | |
|---|---|
| Callout | Description |
| 1a | I/O Control Port Outputs from Three Integrated Power Monitors |
| 2 | Laser Interlock Jack |
| 3a | RS-232 Control Port |
| 4 | USB Port (Type B) |
| 5 | AC Power Cord Connector |
| 6 | Fuse Tray |
| 7 | AC Power Switch |

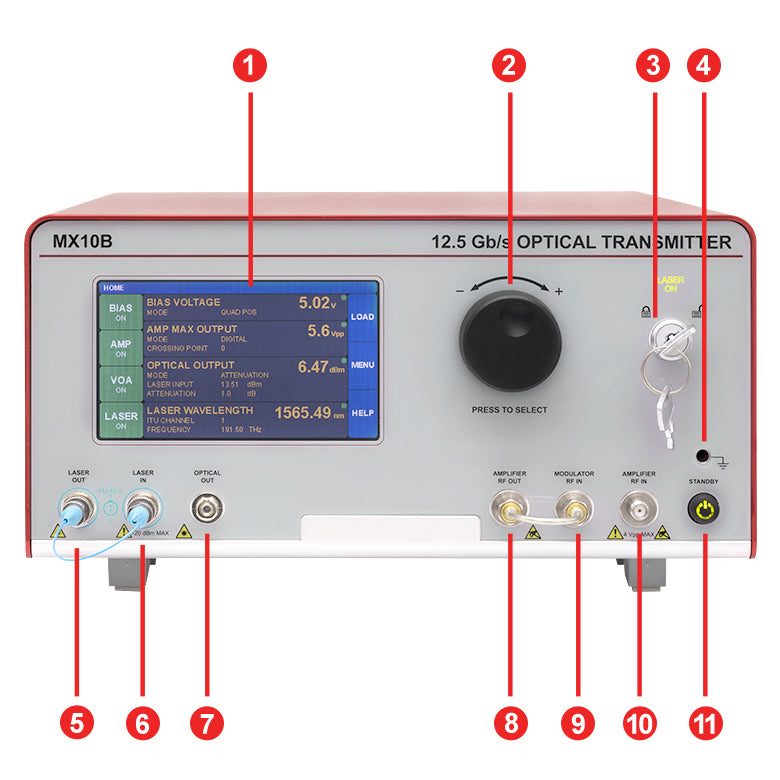

| Front Panel of the THMX10B Series | |
|---|---|
| Callout | Description |
| 1 | Touchscreen Display and Control |
| 2 | Value Adjustment Knob |
| 3 | Key Switch and Indicator Light for Internal Laser |
| 4 | Earth Ground Port for ESD Wrist Strap Banana Plug |
| 5a | Laser Out for Internal Laser Source, Accepts PM Fiber with FC/PC Connector (Narrow Key) |
| 6a | Laser In to Modulator, Accepts PM Fiber with FC/PC Connector (Narrow Key) |
| 7b | Optical Out: Final Output from Modulator, FC/PC Connector (Narrow Key) |
| 8 | Amplifier Out: Signal from Internal Amplifier, SMA Female |
| 9 | Modulator RF In: Signal to Modulator, SMA Female |
| 10 | Amplifier RF In: Signal Input to Amplifier, SMA Female |
| 11 | On/Standby Button |
| System Specifications | ||
|---|---|---|
| Series | THMX10B Series | |
| Amplifier Type | Digital (Limiting) | |
| Usable Bandwidth | 12.5 Gb/s | |
| Internal Laser | Three Options - See Table Below | |
| External Lasera | Wavelength Rangeb | 1250 nm - 1610 nm |
| Optical Input Power | 20 dBm (Max); 22 dBm (Absolute Max) | |
| Optical Output Powerc | 8.5 dBm at 1550 nm 6.5 dBm at 1310 nm |
|
| Power Calibration Points | 1310 nm, 1550 nm, and 1590 nm | |
| RF Optical Extinction Ratio | 13 dB (at 12.5 Gb/s) | |
| Modulator Type | Intensity | |
| Modulator Drive Voltage (Vπ) | 5.5 Vpp | |
| Optical Insertion Loss | 5 dB (1550 nm); 7 dB (1310 nm) | |
| Small Signal Bandwidthd | 7 GHz | |
| Low Frequency Cutoff | 100 kHz | |
| Electrical Return Loss | -10 dB (Any RF Port, Typical) | |
| Amplifier RF Input (Digital Mode) | 400 mVpp (Typical) 3.5 Vpp (Max) 4 Vpp (Absolute Max) |
|
| RF Amplifier Gain | 34 dB | |
| Amplifier Type | Digital (Limiting) | |
| Bit Rate (Maximum) | 12.5 Gb/s | |
| Internal Laser Wavelength | C-Band, L-Band, 1310 nmb | |
| Internal Laser Output Power (Typ.) |
13.5 dBm | |
|
External Input Laser Wavelength Rangec |
1250 nm - 1610 nm | |
| Amplifier RF Output Swing (User-Adjustable) |
3 V to 7 V | |
| Low Frequency Cutoff | 100 kHz | |
| RF Amplifier Gain | 34 dB | |
| RF Optical Extinction Ratio | 13 dB (Typical Maximum) | |
| Modulator Type | Intensity | |
