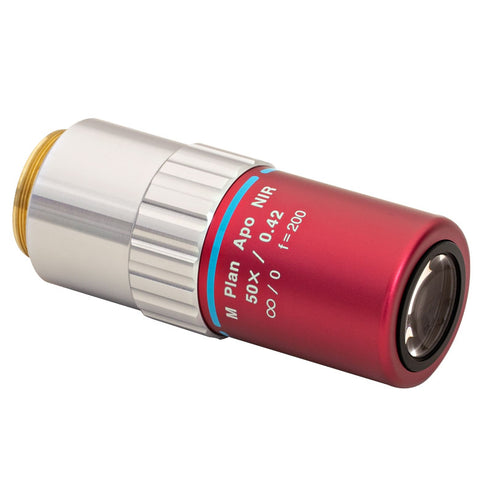

TH-MY50X-825 - 50X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.42 NA, 17.0 mm WD

TH-MY50X-825 - 50X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.42 NA, 17.0 mm WD

Product Drawing

• Long Working Distance
• Infinity-Corrected Plan Apochromat Design
• M26 x 0.706 Threading
• Designed for a Tube Lens Focal Length of 200 mm
• 95 mm Parfocal Length

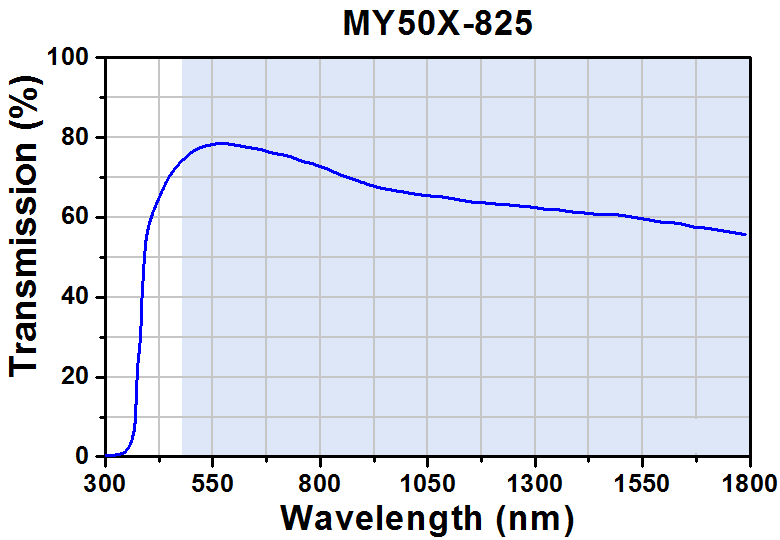

Wavelength Range 480 - 1800 nm

Magnification 50X

Working Distance 17.0  mm

Effective Focal Length 4 mm

Numerical Aperture 0.42

Entrance Pupil Diameter 3.4 mm

Resolution 0.8 µm

Optical Field Number 24

Parfocal Length 95 mm

Cover Glass Thickness 0 mm

AR Coating Reflectance Proprietary

Objective Threading M26 x 0.706; 5 mm Depth
