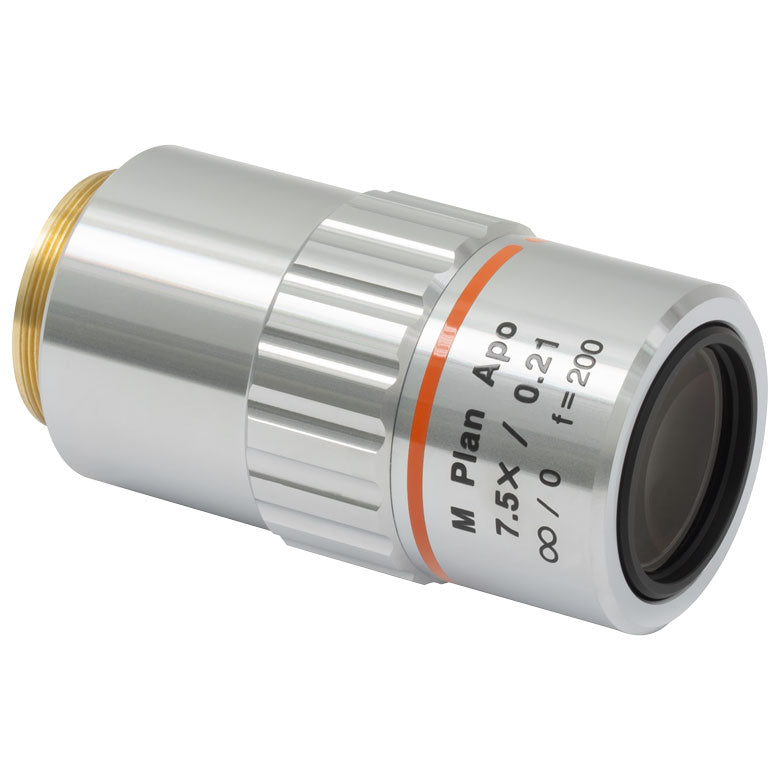

TH-MY7X-807 - 7.5X Mitutoyo Plan Apochromat Objective, 436 - 656 nm, 0.21 NA, 35 mm WD

Fosco Connect Part No.: THMY7X-807

  • $ 2,025.00 or



TH-MY7X-807 - 7.5X Mitutoyo Plan Apochromat Objective, 436 - 656 nm, 0.21 NA, 35 mm WD

  • Long Working Distance
  • Infinity-Corrected Plan Apochromat Design
  • M26 x 0.706 Threading
  • Designed for a Tube Lens Focal Length of 200 mm
  • 95 mm Parfocal Length

Wavelength Range 436 - 656 nm

Magnification 7.5X

Working Distance 35.0  mm

Effective Focal Length 26.7 mm

Numerical Aperture 0.21

Entrance Pupil Diameter 11.2 mm

Resolution 1.6 µm

Optical Field Number 24

Parfocal Length 95 mm

Cover Glass Thickness 0 mm

AR Coating Reflectance Proprietary

Objective Threading M26 x 0.706; 5 mm Depth

Product Drawing
