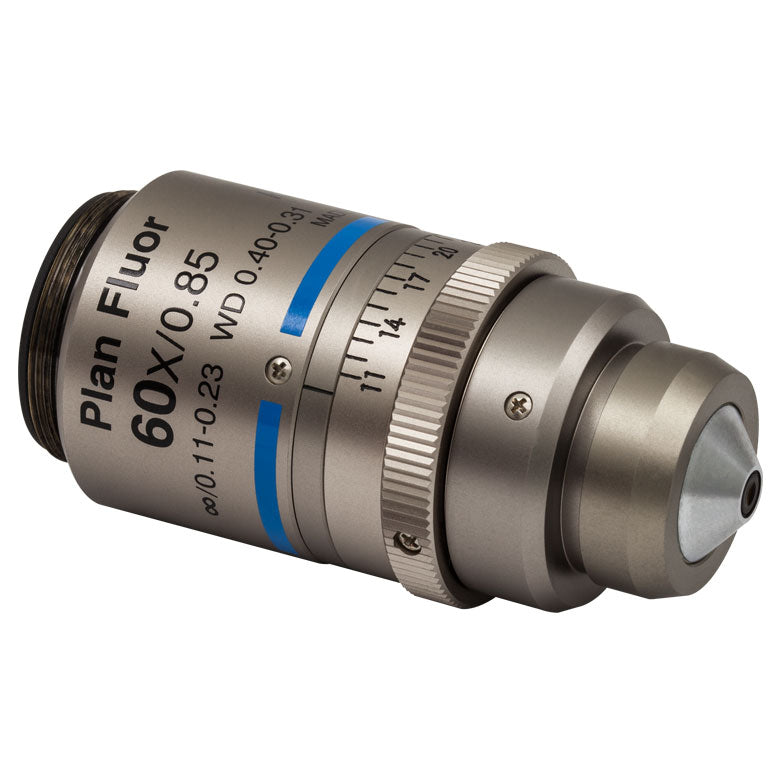

TH-N60X-PF - 60X Nikon Plan Fluorite Imaging Objective with Correction Collar, 0.85 NA, 0.31 - 0.4 mm WD
TH-N60X-PF - 60X Nikon Plan Fluorite Imaging Objective with Correction Collar, 0.85 NA, 0.31 - 0.4 mm WD
- Infinity-Corrected Plan Fluorite Design
- Ideal for Imaging or Focusing Laser Light
- M25 x 0.75 Threading
- Designed for a Tube Lens Focal Length of 200 mm
- 60 mm Parfocal Length
Wavelength Range UV to NIR
Magnification 60X
Working Distance 0.31 - 0.4 mm
Effective Focal Length 3.3 mm
Numerical Aperture 0.85
Entrance Pupil Diameter 5.7 mm
Resolution 0.4 µm
Optical Field Number 25
Parfocal Length 60 mm
Cover Glass Thickness 0.11 - 0.23 mm
Performance Graphs Proprietary
AR Coating Reflectance Proprietary
Objective Threading M25 x 0.75; 5 mm Depth
