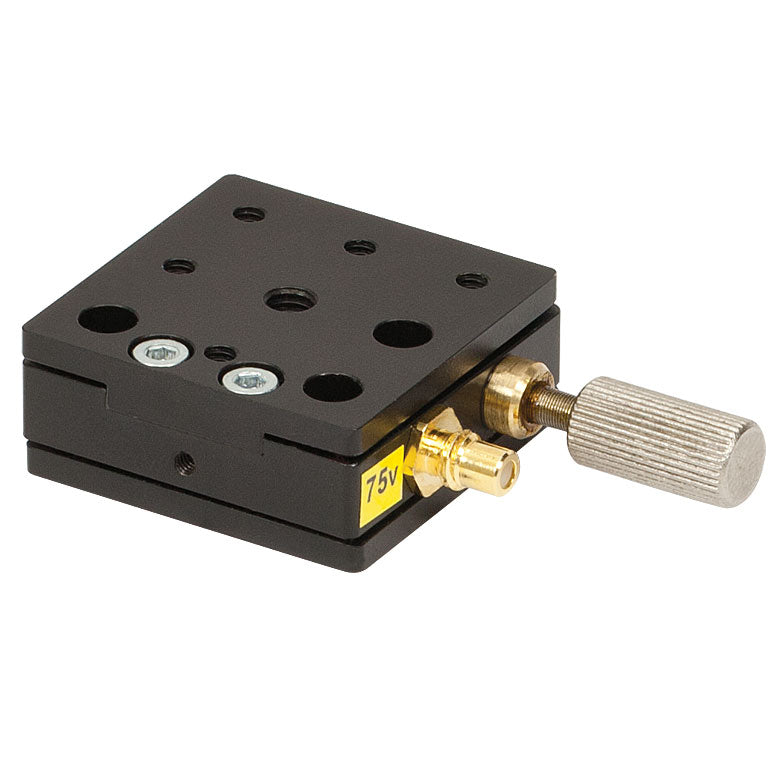

TH-NF15AP25-M - NanoFlex™ 1.5 mm Travel Translation Stage with 25 µm Piezo Actuator, Metric
The stages are supplied with a thumbscrew adjuster which provides manual adjustment and a 25 µm piezo actuator. The NF15AP25(/M) stages are ideal for a variety of laboratory and OEM applications. The NF15AP25(/M) translation stages are shipped with three M2 cap screws, an Allen key, and a 3 m long male SMC to male SMC cable.
|
Key Specificationsa
|
|
|---|---|
| Item # | NF15AP25(/M) |
| Manual Travel | 1.5 mm (0.06") |
| Adjuster Resolution | 0.25 mm/Revolution |
| Load Capacity | Horizontal: 0.5 kg (1.1 lbs) Vertical: 0.25 kg (0.55 lbs) |
| Cross Talk | 1.0 µm (Max) |
| Piezo Travel | 25 µm |
| Piezo Resolution (Theoretical) |
0.76 nm |
| Piezo Voltage | 0 - 75 V |
