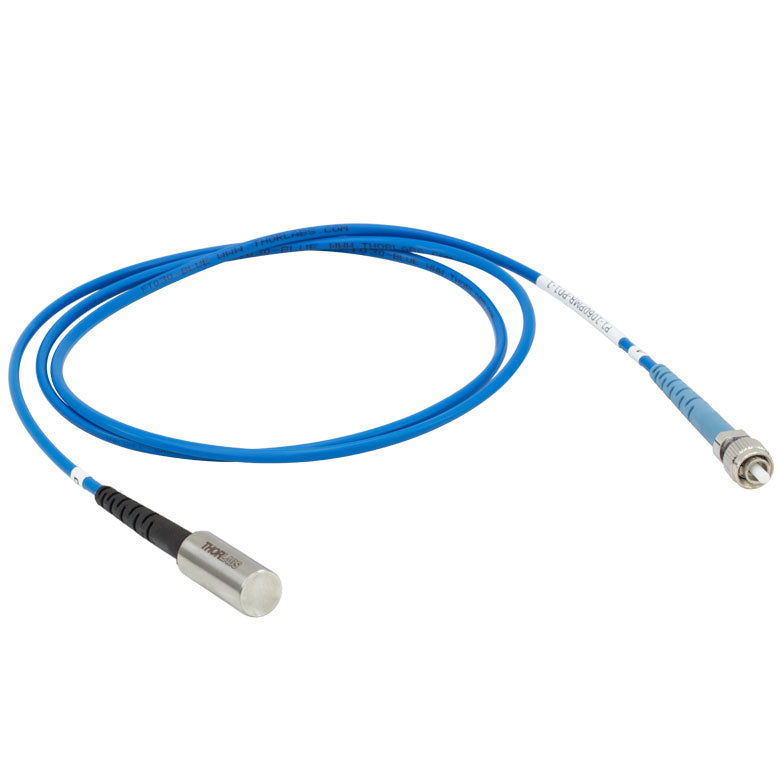

TH-P1-1550PMR-P01-1 - Polarization-Maintaining Retroreflector, 1440 - 1625 nm, FC/PC Connector

Fiber PM1550-XP

Wavelength Range 1440-1625 nm

MFD^b    10.1 ± 0.4 µm @ 1550 nm

Insertion Loss (Max)^c  1.0 dB

Extinction Ratio (Min) 22 dB

Cladding Diameter 125 ± 2 µm

Coating Diameter 245 ± 15 µm

NA 0.12

Connector^d  FC/PC

Product Drawing
