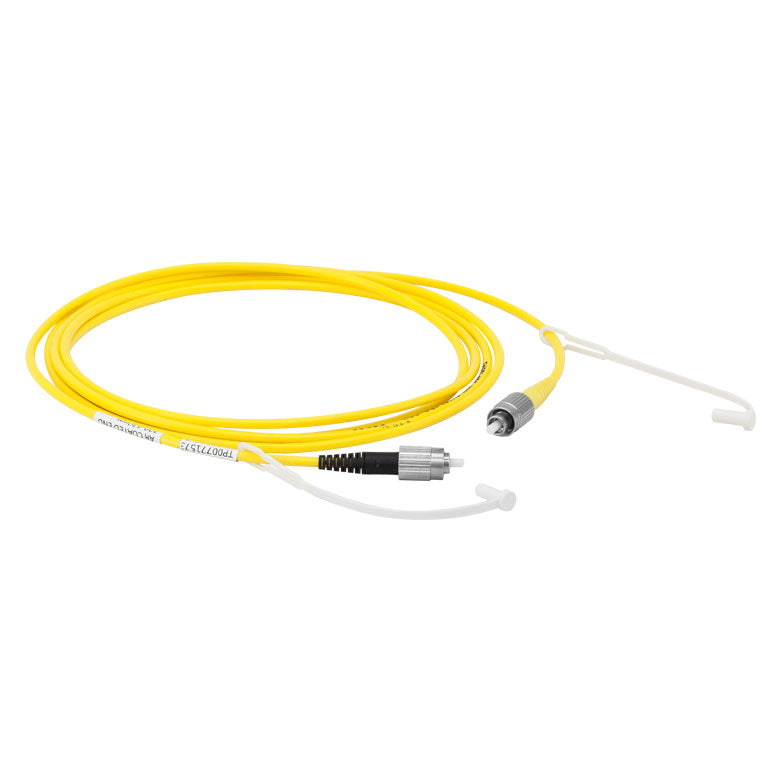

TH-P1-305AR-2 - SM Patch Cable, AR-Coated FC/PC to Uncoated FC/PC, 320 - 430 nm, 2 m
TH-P1-305AR-2 - SM Patch Cable, AR-Coated FC/PC to Uncoated FC/PC, 320 - 430 nm, 2 m

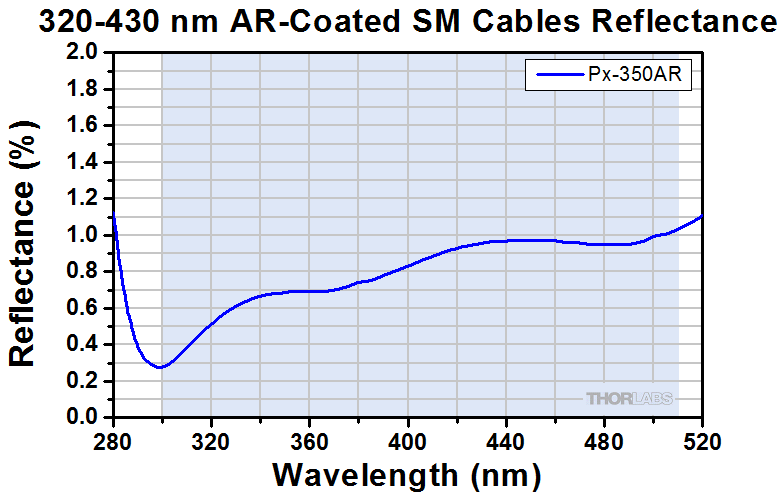

AR Coating Ravg < 1% for 300 - 510 nm
Jacket Ø3 mm Yellow PVC Furcation Tubing
Fiber Type SM300
Bare Fiber Wavelength Range 320 - 430 nm
Cutoff Wavelength ≤310 nm
MFDb 2.0 - 2.4 µm @ 350 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 15 µm
Max Attenuationc ≤70 dB/km @ 350 nm
NA 0.12 - 0.14
