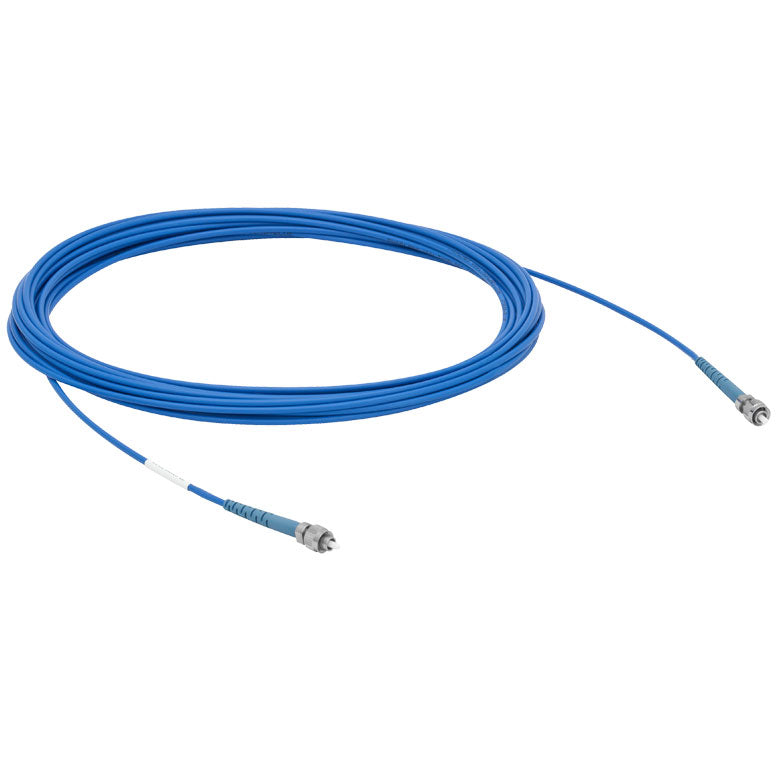

TH-P1-630PM-FC-10 - PM Patch Cable, PANDA, 630 nm, FC/PC, 10 m

Alignment Wavelength 630 nm

Fiber Type Panda PM630HP

Operating Wavelength 620 - 850 nm

Cutoff Wavelength 570 ± 50 nm

Extinction Ratio^a,b  20 dB (Min) 22 dB (Typ.)

Insertion Loss^a,b 1.20 dB (Max) 1.00 dB (Typ.)

Mode Field Diameter^c   4.5 ± 0.5 µm @ 630 nm

Jacket Ø3 mm Blue PVC Furcation Tubing

Product Drawing
