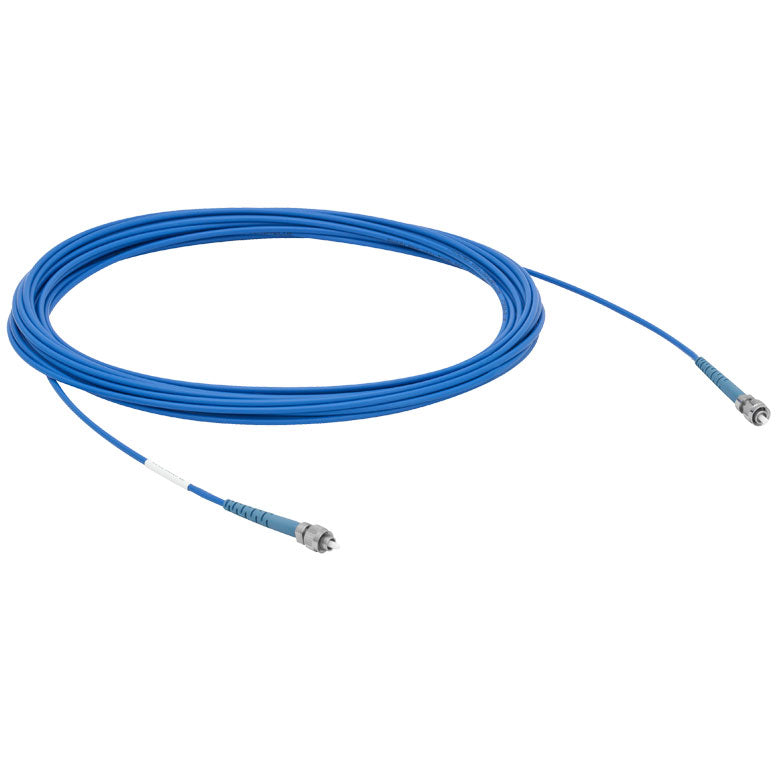

TH-P1-780PM-FC-1 - PM Patch Cable, PANDA, 780 nm, FC/PC, 1 m

Alignment Wavelength 780 nm

Fiber Type Panda PM780-HP

Operating Wavelength 770 - 1100 nm

Cutoff Wavelength 710 ± 60 nm

Extinction Ratio^a,b  20 dB (Min) 22 dB (Typ.)

Insertion Loss^a,b 1.00 dB (Max) 0.7 dB (Typ.)

Mode Field Diameter^c   5.3 ± 1.0 µm @ 850 nm

Jacket Ø3 mm Blue PVC Furcation Tubing

Product Drawing
