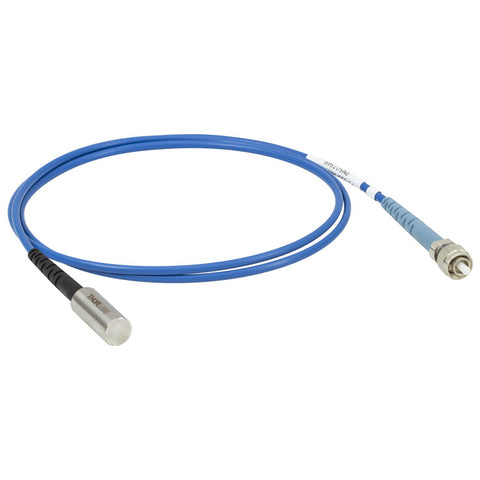

TH-P1-780PMR-P01-1 - Polarization-Maintaining Retroreflector, 770 - 1100 nm, FC/PC Connector

Fiber PM780-HP

Wavelength Range 770-1100 nm

MFD^b    5.3 ± 1.0 µm @ 850 nm

Insertion Loss (Max)^c 2.0 dB

Extinction Ratio (Min) 18 dB

Cladding Diameter 125 ± 2 µm

Coating Diameter 245 ± 15 µm

NA 0.12

Connector^d  FC/PC

Product Drawing
