TH-P1-SMF28ER-P01-1 - Single Mode Retroreflector, 1260 - 1625 nm, FC/P

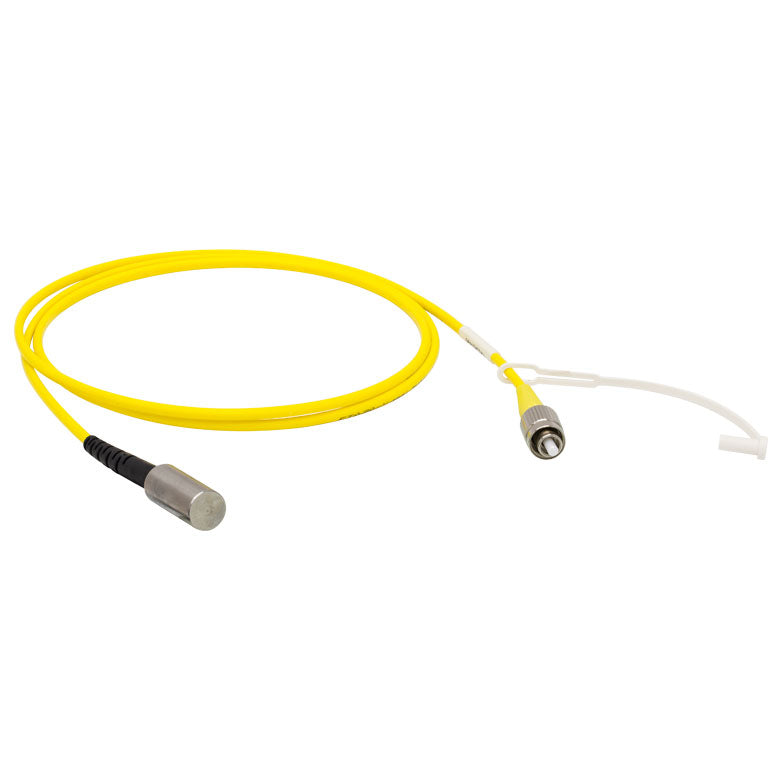

TH-P1-SMF28ER-P01-1 - Single Mode Retroreflector, 1260 - 1625 nm, FC/PC Connector

Fosco Connect Part No.: TH-P1-SMF28ER-P01-1

TH-P1-SMF28ER-P01-1 - Single Mode Retroreflector, 1260 - 1625 nm, FC/PC Connector

Item #^a	Fiber	Wavelength Range	MFD^b	Insertion Loss (Typ.)^c	Cladding Diameter	Coating Diameter	NA	Connector
THP1-630R-P01-1	SM600	630 - 780 nm	3.6 - 5.3 µm @ 633 nm	4 dB	125 ±1.0 µm	245 ± 15 µm	0.10 - 0.14	FC/PC
THP5-630R-P01-1	SM600	630 - 780 nm	3.6 - 5.3 µm @ 633 nm	4 dB	125 ±1.0 µm	245 ± 15 µm	0.10 - 0.14	FC/APC
THP1-780R-P01-1	780HP	780 - 970 nm	5.0 ± 0.5 µm @ 850 nm	3 dB	125 ± 1 µm	245 ± 15 µm	0.13	FC/PC
THP5-780R-P01-1	780HP	780 - 970 nm	5.0 ± 0.5 µm @ 850 nm	3 dB	125 ± 1 µm	245 ± 15 µm	0.13	FC/APC
THP1-1060R-P01-1	SM980-5.8-125	980 - 1550 nm	5.3 - 6.4 µm @ 980 nm	2 dB	125 ± 1 µm	245 ± 15 µm	0.13 - 0.15	FC/PC
THP5-1060R-P01-1	SM980-5.8-125	980 - 1550 nm	5.3 - 6.4 µm @ 980 nm	2 dB	125 ± 1 µm	245 ± 15 µm	0.13 - 0.15	FC/APC
THP1-SMF28ER-P01-1	SMF-28-Ultra	1260 - 1625 nm	9.2 ± 0.4 µm @ 1310 nm 10.4 ± 0.5 µm @ 1550 nm	0.6 dB	125 ± 0.7 µm	242 ± 5 µm	0.14	FC/PC
THP5-SMF28ER-P01-1	SMF-28-Ultra	1260 - 1625 nm	9.2 ± 0.4 µm @ 1310 nm 10.4 ± 0.5 µm @ 1550 nm	0.6 dB	125 ± 0.7 µm	242 ± 5 µm	0.14	FC/APC
