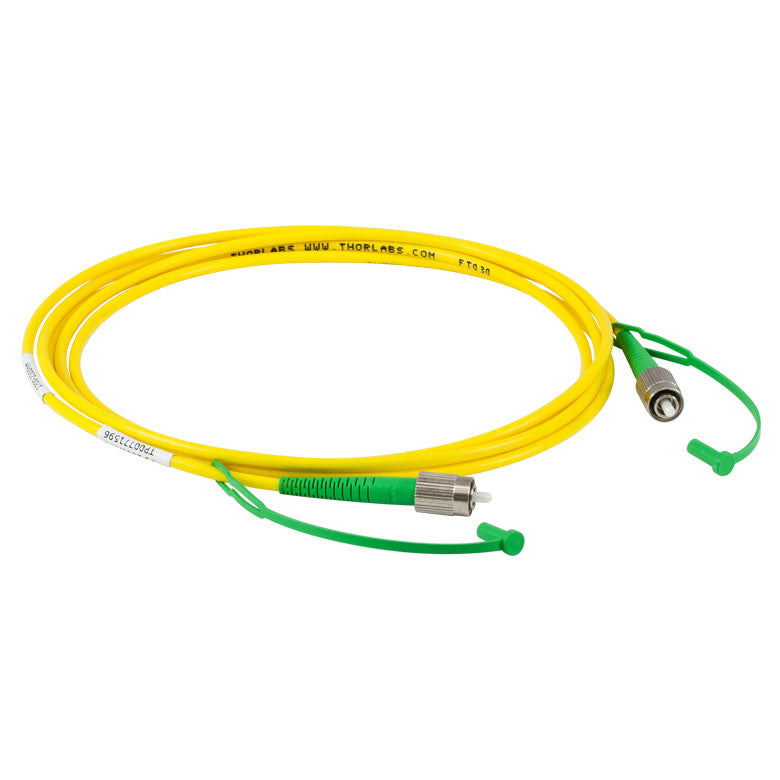

TH-P3-2000AR-2 - SM Patch Cable, AR-Coated FC/APC to Uncoated FC/APC, 1700 - 2100 nm, 2 m
TH-P3-2000AR-2 - SM Patch Cable, AR-Coated FC/APC to Uncoated FC/APC, 1700 - 2100 nm, 2 m

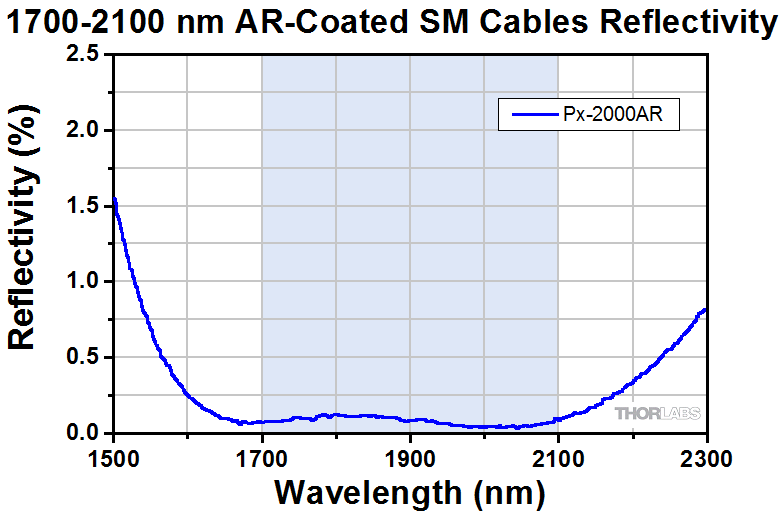

AR Coating Ravg < 0.5% for 1700 - 2100 nm
Jacket Ø3 mm Yellow PVC Furcation Tubing
Fiber Type SM2000
Bare Fiber Wavelength Range 1700 - 2300 nm
Cutoff Wavelength 1750 ± 50 nm
MFDb 13 - 1 µm @ 19960 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 10 µm
Typical Attenuationb 20 dB/km (0.02 dB/m) @ 1.9 µm 250 dB/km (0.25 dB/m) @ 2.3 µm
NA 0.12 - 0.01
