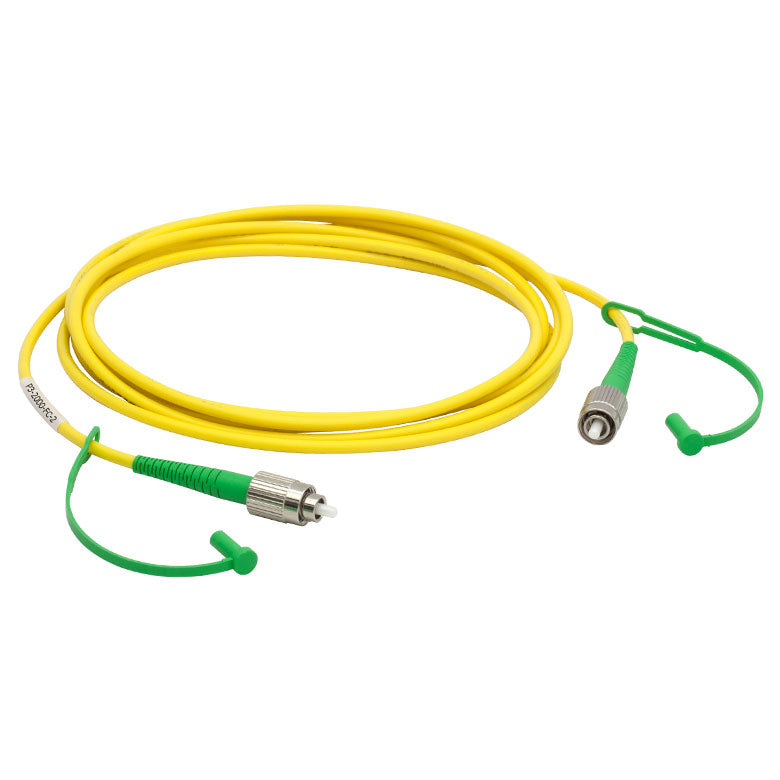

TH-P3-460Y-FC-2 - Single Mode Patch Cable, 488 - 633 nm, FC/APC, Ø900 µm Jacket, 2 m Long
TH-P3-460Y-FC-2 - Single Mode Patch Cable, 488 - 633 nm, FC/APC, Ø900 µm Jacket, 2 m Long
Fiber Type SM450
Operating Wavelength 488 - 633 nm
Cutoff Wavelength 350 - 470 nm
Mode Field Diameter 2.8 - 4.1 µm @ 488 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 15 µm
Max Attenuationa ≤50 dB/km @ 488 nm
NA 0.10 - 0.14
Connectors FC/APC, 2.0 mm Narrow Key
Jacket Ø900 µm Yellow Hytrel®c Tubing
