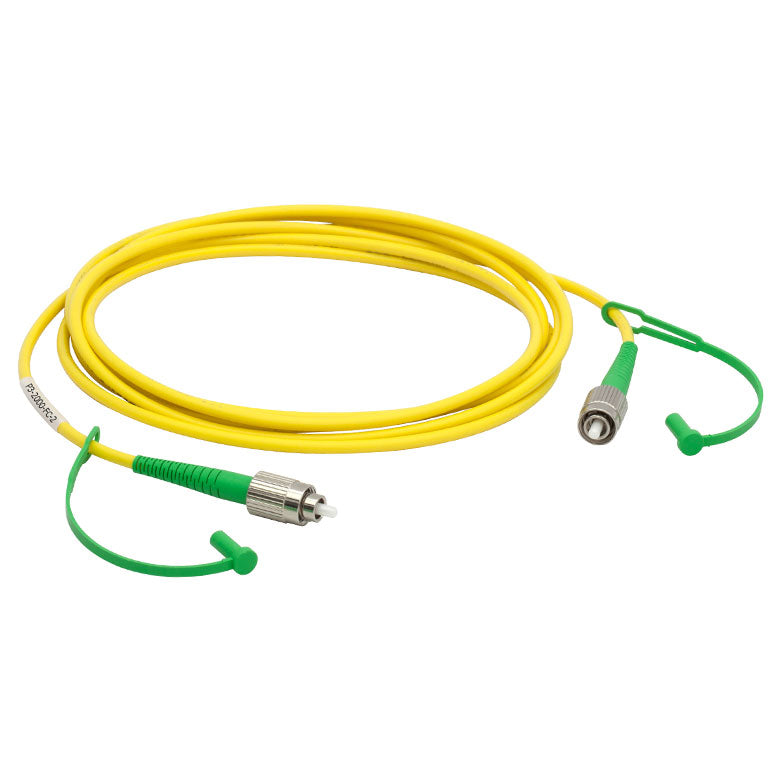

TH-P3-630A-FC-5 - Single Mode Patch Cable, 633 - 780 nm, FC/APC, Ø3 mm Jacket, 5 m Long
TH-P3-630A-FC-5 - Single Mode Patch Cable, 633 - 780 nm, FC/APC, Ø3 mm Jacket, 5 m Long
Fiber Type SM600
Operating Wavelength 633 - 780 nm
Cutoff Wavelength 500 - 600 nm
Mode Field Diameter 3.6 - 5.3 µm @ 633 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 15 µm
Max Attenuationa <15 dB/km @ 633 nm
NA 0.10 - 0.14
Connectors FC/APC, 2.0 mm Narrow Key
Jacket Ø3 mm Yellow PVC Furcation Tubing
