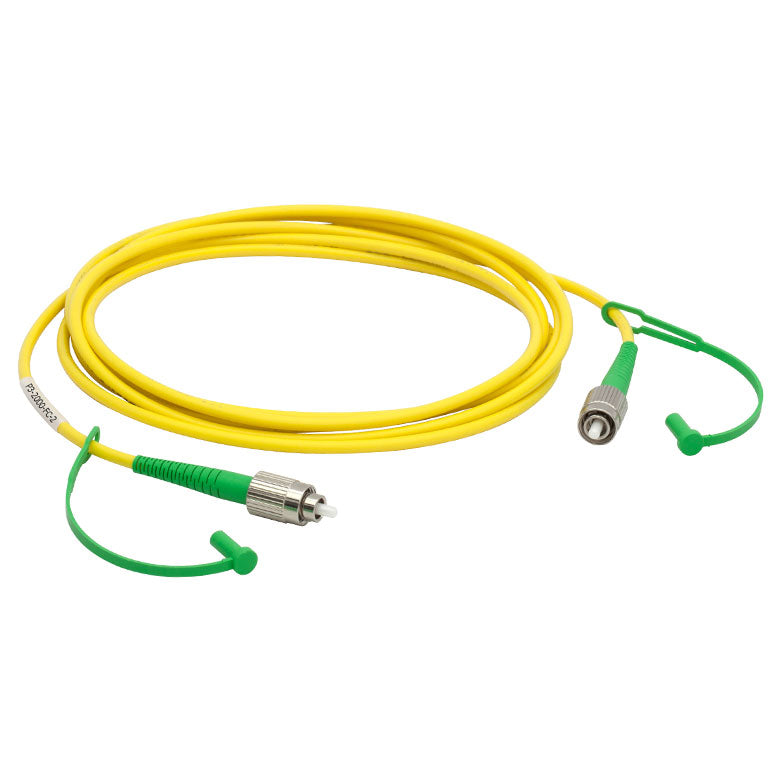

TH-P3-780Y-FC-1 - Single Mode Patch Cable, 780 - 970 nm, FC/APC, Ø900 µm Jacket, 1 m Long
TH-P3-780Y-FC-1 - Single Mode Patch Cable, 780 - 970 nm, FC/APC, Ø900 µm Jacket, 1 m Long
Fiber Type 780HP
Operating Wavelength 780 - 970 nm
Cutoff Wavelength 730 ± 30 nm
Mode Field Diameter 5.0 ± 0.5 µm@ 850 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 15 µm
Max Attenuationa <3.5 dB/km @ 780 nm
NA 0.13
Connectors FC/APC, 2.0 mm Narrow Key
Jacket Ø900 µm Yellow Hytrel®b Tubing
