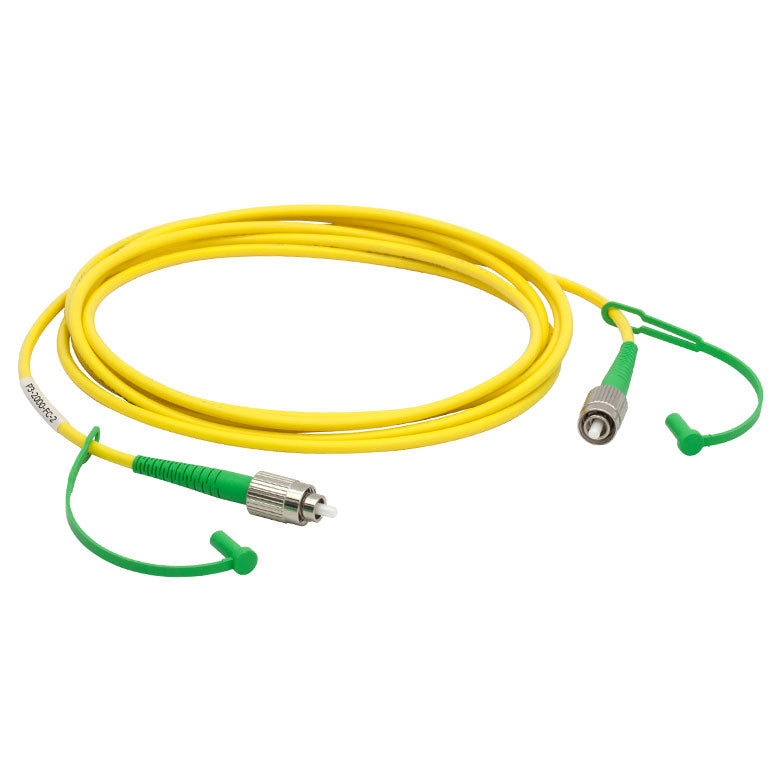

TH-P3-830A-FC-2 - Single Mode Patch Cable, 830 - 980 nm, FC/APC, Ø3 mm Jacket, 2 m Long
TH-P3-830A-FC-2 - Single Mode Patch Cable, 830 - 980 nm, FC/APC, Ø3 mm Jacket, 2 m Long
Fiber Type SM800-5.6-125
Operating Wavelength 830 - 980 nm
Cutoff Wavelength 660 - 800 nm
Mode Field Diameter 4.7 - 6.9 µm@ 830 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 15 µm
Max Attenuationa <5 dB/km
NA 0.10 - 0.14
Connectors FC/APC, 2.0 mm Narrow Key
Jacket Ø3 mm Yellow PVC Furcation Tubing
