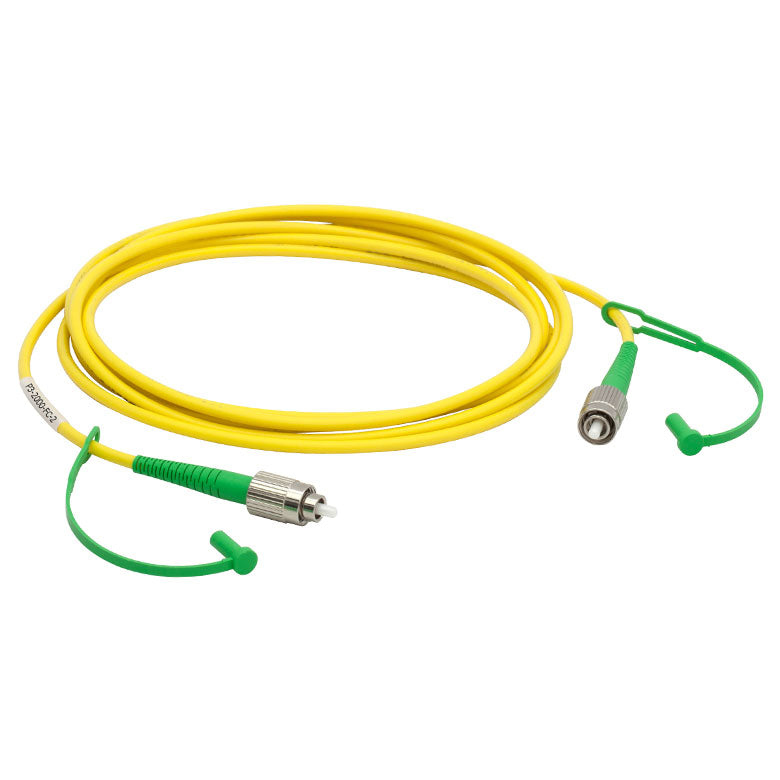

TH-P3-980A-FC-5 - Single Mode Patch Cable, 980 - 1550 nm, FC/APC, Ø3 mm Jacket, 5 m Long
TH-P3-980A-FC-5 - Single Mode Patch Cable, 980 - 1550 nm, FC/APC, Ø3 mm Jacket, 5 m Long
Fiber Type SM980-5.8-125
Operating Wavelength 980 - 1550 nm
Cutoff Wavelength 870 - 970 nm
Mode Field Diameter 5.3 - 6.4 µm@ 980 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 15 µm
Max Attenuationa ≤2.0 dB/km @ 980 nm
NA 0.13 - 0.15
Connectors FC/APC, 2.0 mm Narrow Key
Jacket Ø3 mm Yellow PVC Furcation Tubing
