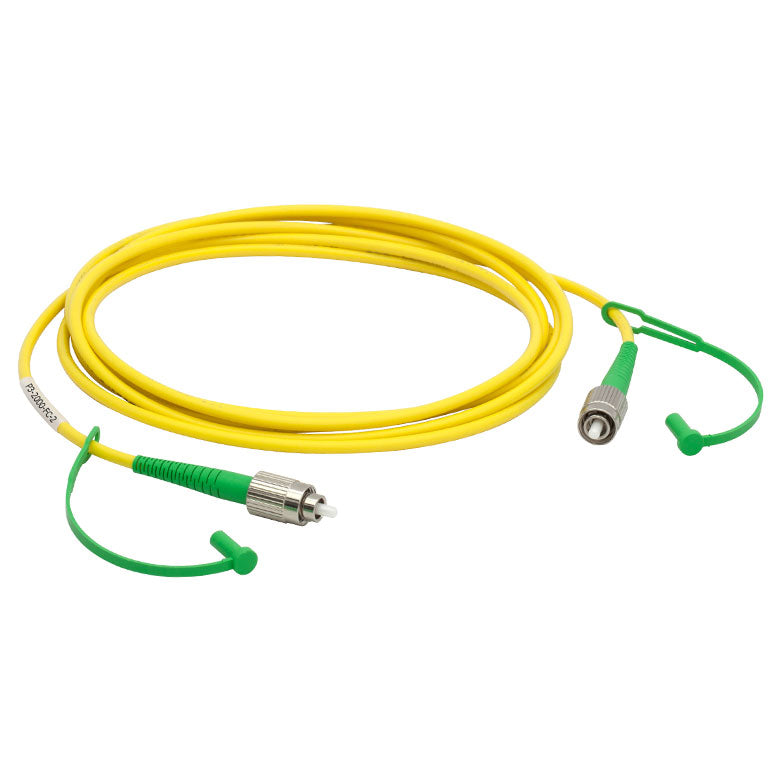

TH-P3-SMF28E-FC-10 - Single Mode Patch Cable, 1260-1625 nm, FC/APC, Ø3 mm Jacket, 10 m Long

Product Drawing

Fiber Type SMF-28ULTRA

Operating Wavelength 1260 - 1625 nm

Cutoff Wavelength <1260 nm

Mode Field Diameter 9.2 ± 0.4 µm @ 1310 nm 10.4 ± 0.5 µm @ 1550 nm

Cladding Diameter 125 ± 0.7 µm

Coating Diameter 242 ± 5 µm

Max Attenuation^a  ≤0.32 dB/km @ 1310 nm ≤0.18 dB/km @ 1550 nm

NA  0.14

Connectors FC/APC, 2.0 mm Narrow Key

Jacket  Ø3 mm Yellow PVC Furcation Tubing Ø900 µm Yellow Hytrel^® Tubing
