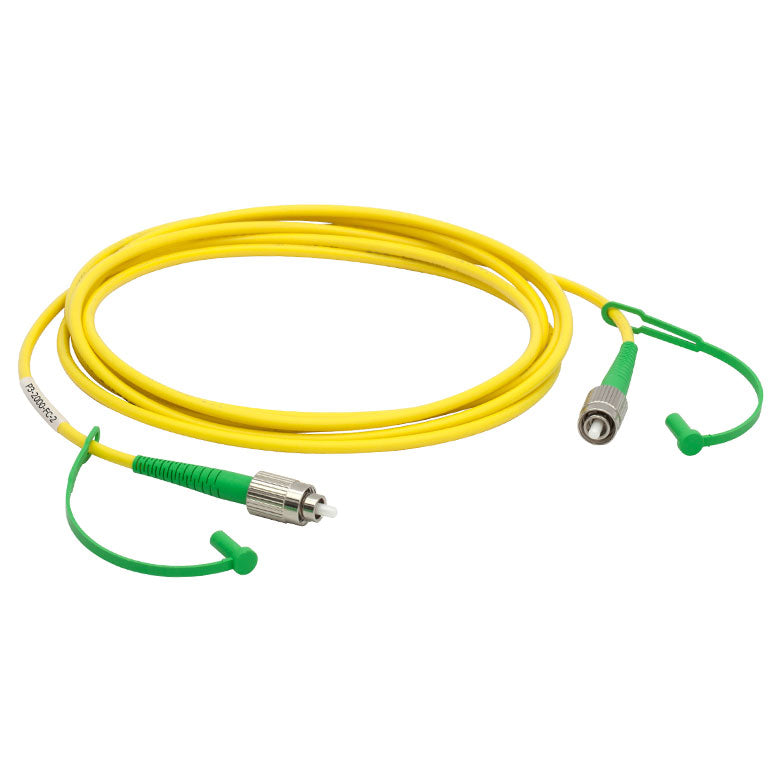

TH-P3-SMF28Y-FC-1 - Single Mode Patch Cable, 1260-1625 nm, FC/APC, Ø900 µm Jacket, 1 m Long
TH-P3-SMF28Y-FC-1 - Single Mode Patch Cable, 1260-1625 nm, FC/APC, Ø900 µm Jacket, 1 m Long
Fiber Type SMF-28ULTRA
Operating Wavelength 1260 - 1625 nm
Cutoff Wavelength <1260 nm
Mode Field Diameter 9.2 ± 0.4 µm @ 1310 nm 10.4 ± 0.5 µm @ 1550 nm
Cladding Diameter 125 ± 0.7 µm
Coating Diameter 242 ± 5 µm
Max Attenuationa ≤0.32 dB/km @ 1310 nm ≤0.18 dB/km @ 1550 nm
NA 0.14
Connectors FC/APC, 2.0 mm Narrow Key
Jacket Ø3 mm Yellow PVC Furcation Tubing Ø900 µm Yellow Hytrel® Tubing
