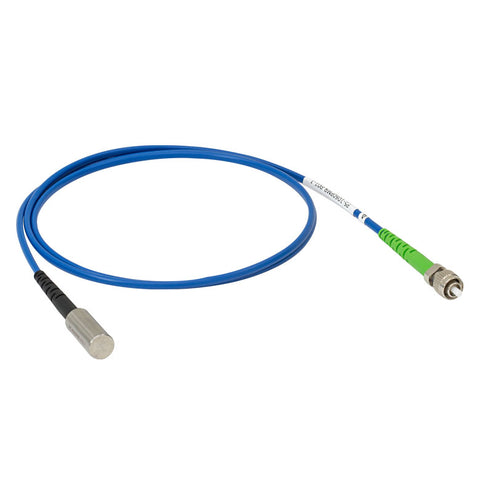

TH-P5-1060PMR-P01-1 - Polarization-Maintaining Retroreflector, 970 - 1550 nm, FC/APC Connector

Fiber PM980-XP

Wavelength Range 970-1550 nm

MFD^b    6.6 ± 0.5 µm @ 980 nm

Insertion Loss (Max)^c  1.4dB

Extinction Ratio (Min) 22 dB

Cladding Diameter 125 ± 1 µm

Coating Diameter 245 ± 15 µm

NA 0.12

Connector^d  FC/APC

Product Drawing
