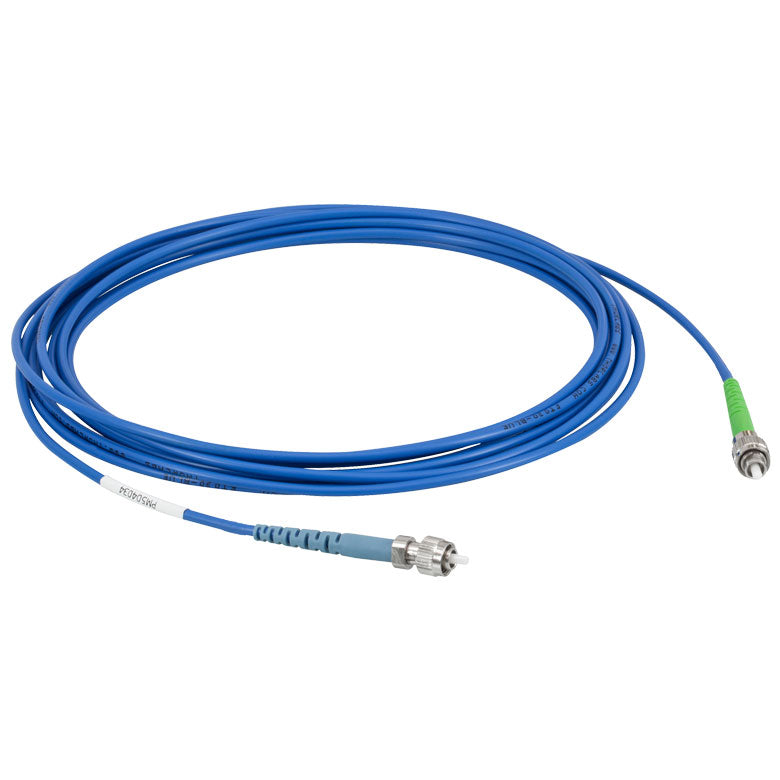

TH-P5-630PM-FC-2 - PM Patch Cable, PANDA, 630 nm, FC/PC to FC/APC, 2 m

Alignment Wavelength 630 nm

Fiber Type Panda PMS630-HP

Operating Wavelength 620 - 850 nm

Cutoff Wavelength  570 ± 50 nm

Extinction Ratio^a,b  20dB (Min) 22 dB (Typ.)

Insertion Loss^a,b  1.20 dB (Max) 1.00 dB (Typ.)

Mode Field Diameter^c  4.5 µm ± 0.5 µm@ 630 nm

Jacket Ø3 mm Blue PVC Furcation Tubing

Product Drawing
