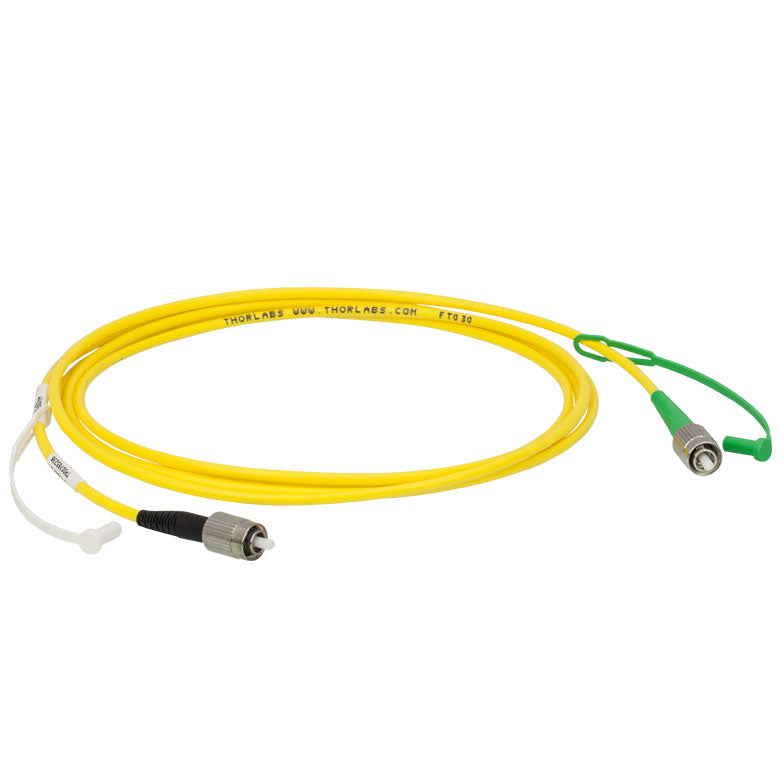

TH-P5-780AR-2 - SM Patch Cable, AR-Coated FC/PC to Uncoated FC/APC, 780 - 970 nm, 2 m
TH-P5-780AR-2 - SM Patch Cable, AR-Coated FC/PC to Uncoated FC/APC, 780 - 970 nm, 2 m

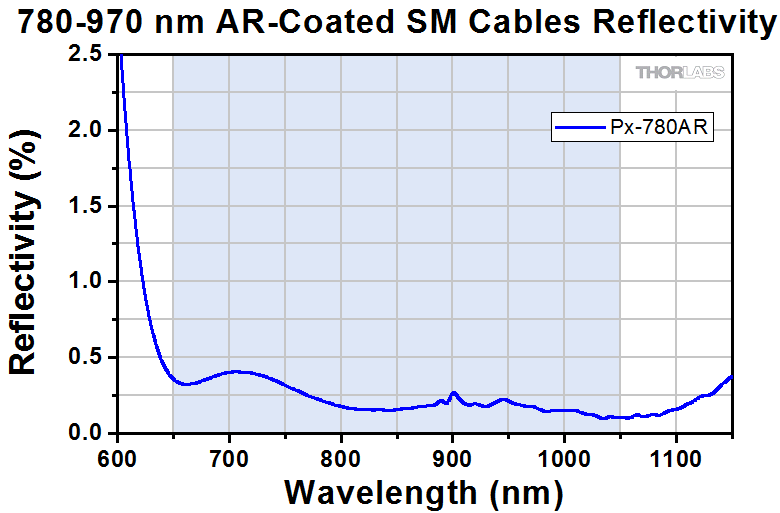

AR Coating Ravg < 0.5% for 650 - 1050 nm
Jacket Ø3 mm Yellow PVC Furcation Tubing
Fiber Type 780HP
Bare Fiber Wavelength Range 780 - 970 nm
Cutoff Wavelength 730 ± 30 nm
MFDb 5.0 ± 0.5 µm @ 850 nm
Cladding Diameter 125 ± 1.0 µm
Coating Diameter 245 ± 15 µm
Max Attenuationc <3.5 dB/km @ 850 nm
NA 0.13
