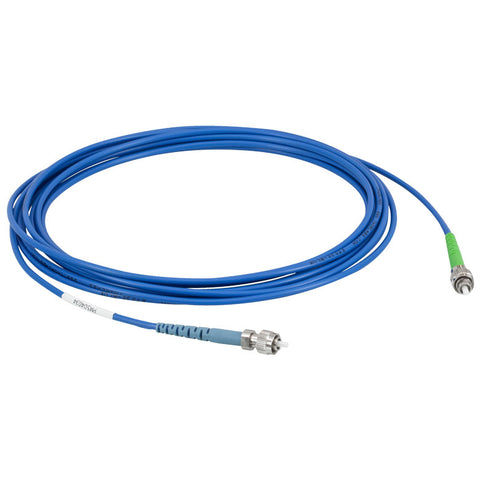

TH-P5-780PM-FC-5 - PM Patch Cable, PANDA, 780 nm, FC/PC to FC/APC, 5 m

Alignment Wavelength 780 nm

Fiber Type Panda PM780HP

Operating Wavelength 770 - 1100 nm

Cutoff Wavelength  710 ± 60 nm

Extinction Ratio^a,b 20 dB (Min) 22 dB (Typ.)

Insertion Loss^a,b  1.00 dB (Max) 0.70 dB (Typ.)

Mode Field Diameter^c  5.3 µm ± 1.0 µm@ 850 nm

Jacket Ø3 mm Blue PVC Furcation Tubing

Product Drawing
