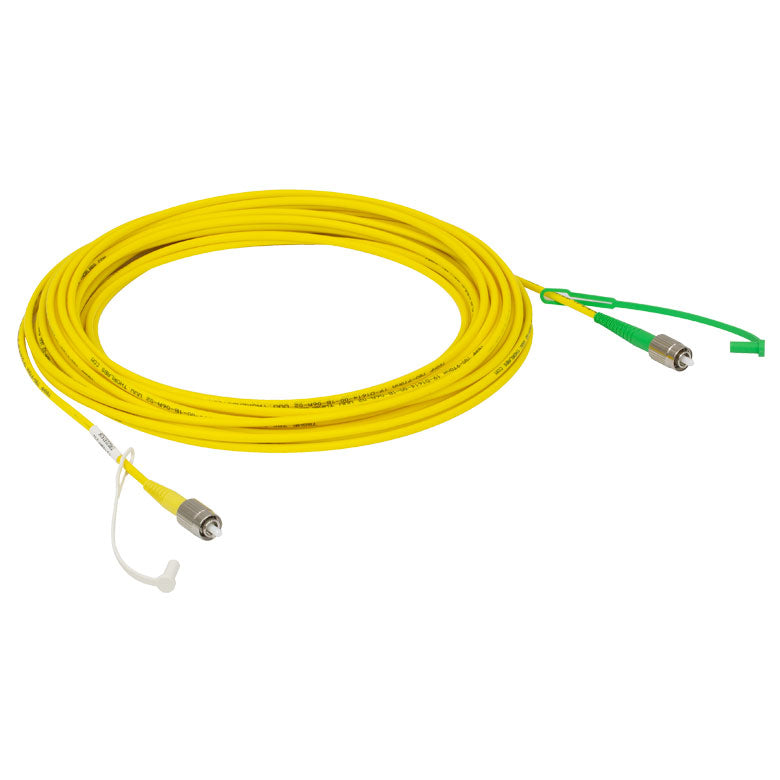

TH-P5-780Y-FC-1 - Single Mode Patch Cable, 780 - 970 nm, FC/PC to FC/A

TH-P5-780Y-FC-1 - Single Mode Patch Cable, 780 - 970 nm, FC/PC to FC/APC, Ø900 µm Jacket, 1 m Long

Fosco Connect Part No.: THP5-780Y-FC-1

TH-P5-780Y-FC-1 - Single Mode Patch Cable, 780 - 970 nm, FC/PC to FC/APC, Ø900 µm Jacket, 1 m Long

Fiber Type 780HP

Operating Wavelength 780 - 970 nm

Cutoff Wavelength 730 ± 30 nm

Mode Field Diameter 5.0 ± 0.5 µm @ 850 nm

Cladding Diameter 125 ± 1 µm

Max Attenuation^a≤4.0 dB/km @ 780 nm ≤3.5 dB/km@ 850 nm

NA 0.13

Furcation Tubing Ø900 µm Hytrel^®b
