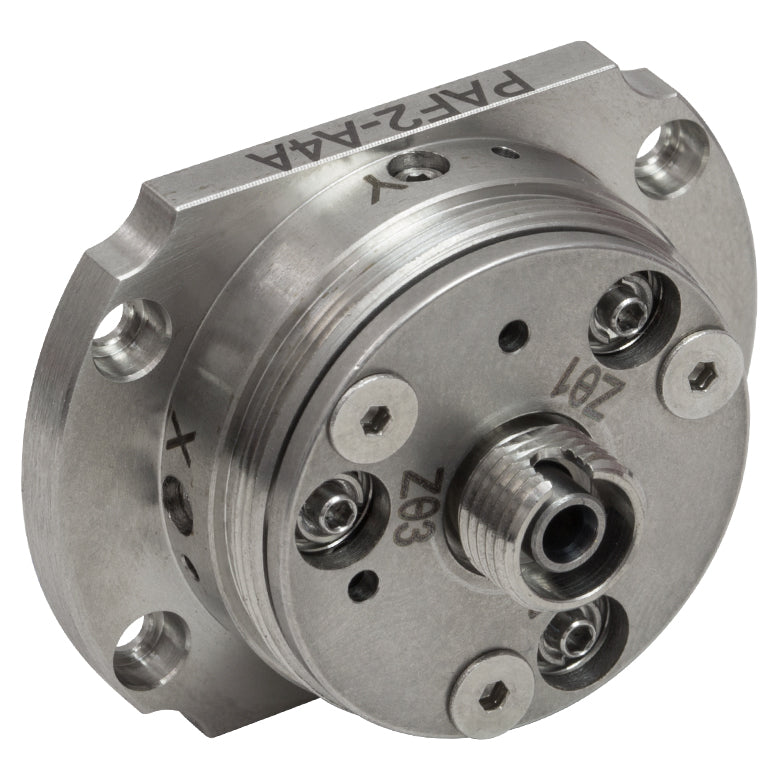

TH-PAF2-A4A - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 350 - 700 nm, Ø0.65 mm Waist

Fosco Connect Part No.: THPAF2-A4A

  • $ 875.00 or



TH-PAF2-A4A - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 350 - 700 nm, Ø0.65 mm Waist

Product Drawing

EFL 4.0 mm

Input MFD 3.5 um

Output 1/eWaist Diameter 0.65mm

Max Waist Distance 378mm

Divergence 0.875 mrad

Lens Characteristics

  • Clear Aperture 1.8 mm
  • NA 0.22
  • Wavelength range of the antireflection coating 350 - 700 nm
  • The length from the tip of the connector bulkhead to the face of the FiberPort flange 0.70" (17.7 mm)
