TH-PM100A - Compact Power Meter Console, Mechanical Analog & Graphical LC Display
TH-PM100A - Compact Power Meter Console, Mechanical Analog & Graphical LC Display

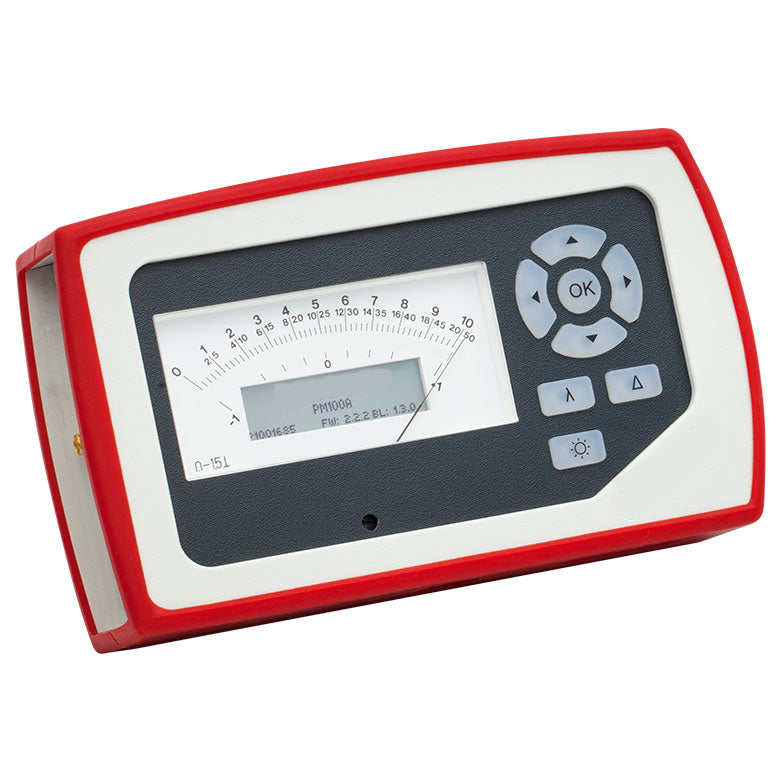

- Compact, Handheld, Analog Needle, Power Meter Console
- Digital Display Screen
- Long-Life Internal Li-Polymer Battery
- Console comes Calibrated with Certificate of Calibration
- 1 GB USB Memory Stick with Software including LabVIEW™ and LabWINDOWS™ /CVI Driver Set, and Operating Manual
Please note that sensors are not included with the THPM100A console. For information about our compatible sensors, please see the sensor descriptions below. We does offer a variety of Power Meter Kits with the PM100A Console bundled with several of our most popular sensors
| Item # | THPM100A | |
|---|---|---|
| Detector Compatibility | Photodiode Sensors: S1xxC Series Photodiodes (Max 5 mA) |
Thermal Sensors: S3xxC Series Thermopiles (Max 1V) |
| Measurement Ranges | 6 Decades; 50 nA - 5 mA Ranges Selectable in W, Sensor Dependent |
4 Decades; 1 mV - 1 V Ranges Selectable in W, Sensor Dependent |
| Wavelength Ranges | 200 nm - 5500 nm | 190 nm - 25 μm |
| Power / Energy Ranges | 100 pW - 20 W | 10 μW - 200 W |
| Units | W, dBm, W/cm², A | W, dBm, W/cm², V |
| Accuracy | ±0.2% of Full Scale (5 µA - 5 mA) ±0.5% of Full Scale (50 nA) |
±0.5% of Full Scale (10 mV - 1 V) ±1% of Full Scale (1 mV) |
| Display Resolution | 1 pA / Responsivity Value (A/W) | 1 µV / Responsivity Value (V/W) |
| Bandwidth | DC - 100 kHz, Dependent on Sensor and Settings | DC - 10 Hz, Dependent on Sensor and Settings |
| Wavelength Correction | Sensor Dependent | Sensor Dependent |
| Item # | THPM100A |
|---|---|
| Display | |
| Display Type | Mechanical Analog Needle with Graphical LCD 132 x 32 pixels |
| Display Screens | Numerical, Relative Measurements, Tuning, Statistics, Mechanical Analog Needle |
| Viewing Area | 48.2 mm x 13.2 mm and 90.0 mm x 42.0 mm |
| Refresh Rate | 20 Hz |
| Backlit Display and Keypad | LED |
| Audio | Speaker |
| Sensor Interface | |
| Compatible Sensors | All Photodiodes, and Thermopiles See Below for Full Sensor Compatibility Specs |
| Time Constant Correction | 1 - 30 s |
| AD Converter | 16 bit |
| Connector | DB9F, Left Side |
| Sensor Temperature Control | Thermistor |
| Temperature Measurement Range | -10 to 80 °C |
| Analog Outputs | |
| Signal | Amplified Input Signal (Not Corrected) |
| Voltage Range | 0 to 2 V |
| Accuracy | ±3% |
| Bandwidth | Up to 100 kHz, Dependent on Sensor and Settings |
| Connector | SMA, Left Side |
| Digital Outputs | |
| Connector / Interface | Mini USB, USB2.0 |
| Power | |
| Battery | LiPolymer 3.7 V 1300 mAh |
| Charger / DC Input | 5 V / 1 A |
| Dimensions and Mounting | |
| Dimensions (LxWxH) | 183 mm x 109 mm x 40 mm |
| Weight | <0.5 kg |
| Mounting Options | Kickstand; 1/4"-20 Post Thread |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -40 to 70 °C |
| Item # | PM100A |
|---|---|
| Compatible Sensors | Photodiode and Thermal |
| Optical Power Range | 100 pW to 200 W |
| Available Sensor Wavelength Range | 185 nm - 25 μm |
| Display Refresh Rate | 20 Hz |
| Bandwidth | DC - 100 kHz |
| Photodiode Sensor Range | 50 nA - 5 mA |
| Thermopile Sensor Range | 1 mV - 1 V |
