TH-PM100D - Compact Power and Energy Meter Console, Digital 4" LCD

Product Drawing

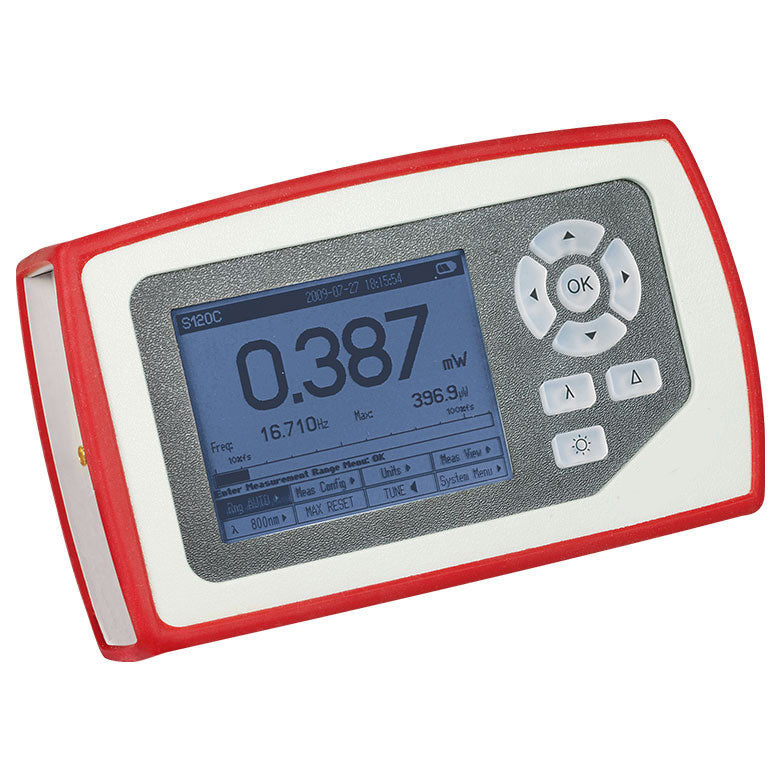

• Compact, Handheld, Power and Energy Meter Console
• Large 4" LCD Screen
• Long-Life Internal Li-Polymer Battery
• Pre-Installed 8 GB SD Memory Card for Data Storage
• Console is Calibrated and Includes Certificate of Calibration

• Item #	THPM100D
  Display
  Display Type	Graphical LCD 320 x 240 pixels, LED Backlight
  Display Screens	Numerical, Bar Graph, Line Graph, Statistics, Simulated Analog Needle
  Viewing Area	81.4 mm x 61.0 mm (3.20" x 2.40")
  Refresh Rate	20 Hz
  Audio	1x Speaker
  Sensor Interface
  Compatible Sensors	All Photodiodes, Thermopiles, and Pyrosa See Below for Full Sensor Specs
  Time Constant Correction	<1 s
  AD Converter	16 bit
  Trigger (Pulse Measurements, Pyroelectric Sensors)	Adjustable, 0.1 - 100%
  Connector	DB9F, Left Side
  Sensor Temperature Control	Thermistor
  Temperature Range	-10 to 80 °C
  Analog Outputs
  Signal	Amplified Input Signal (Not Corrected)
  Voltage Range	0 to 2 V
  Accuracy	±3%
  Bandwidth	Up to 100 kHz, Dependent on Sensor and Settings
  Connector	SMA, Left Side
  Digital Outputs
  Memory	8 GB Removable SD Card
  Connector / Interface	Mini USB / USB 2.0
  Power
  Battery	Li-Polymer, 3.7 V, 1300 mAh
  Charger / DC Input	5 V / 1 A
  Dimensions and Mounting
  Dimensions (L x W x H)	180 mm x 105 mm x 38 mm (7.09" x 4.13" x 1.50")
  Weight	<0.5 kg (<1.1 lb)
  Mounting Options	Kickstand; 1/4"-20 Post Thread
  Operating Temperature	0 to 40 °C
  Storage Temperature	-40 to 70 °C
