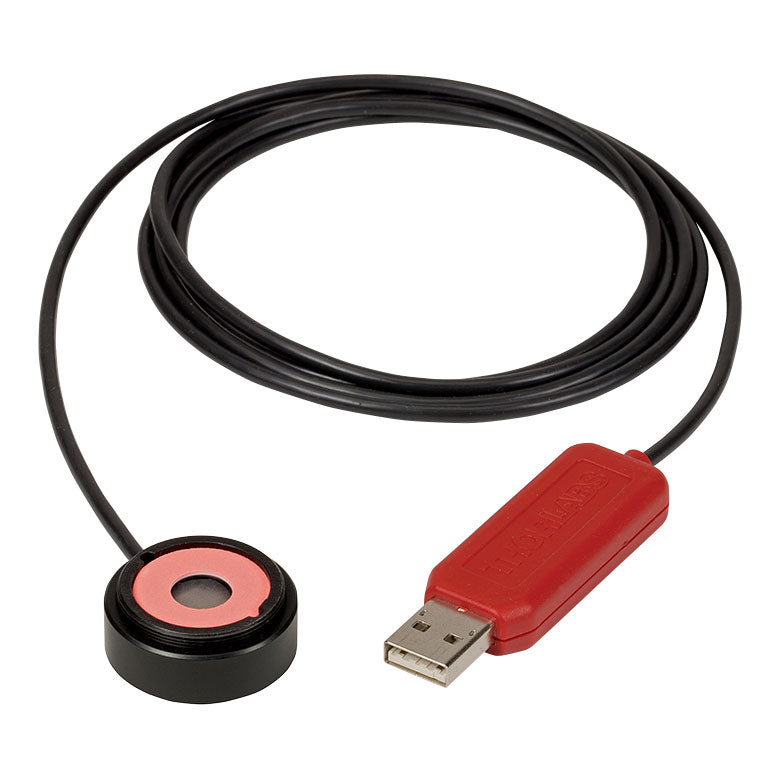

TH-PM16-122 - USB Power Meter, Standard Photodiode Sensor, Ge, 700 - 1800 nm, 40 mW Max
TH-PM16-122 - USB Power Meter, Standard Photodiode Sensor, Ge, 700 - 1800 nm, 40 mW Max
- For General Purpose Optical Power Measurements
- 400 - 1100 nm for Silicon (Si)
- 700 - 1800 nm for Germanium (Ge)
- Integrated Viewing Target for Easy Sensor Alignment
- Ø9.5 mm Sensor Aperture
- Protective Cap Included
| Item #a | THPM16-122 |
|---|---|
| Detector Type | Germanium Photodiode |
| Wavelength Range | 700 - 1800 nm |
| Optical Power Range | 50 nW - 40 mW |
| Aperture Size | Ø9.5 mm |
| Resolution | <2 nW |
| ND Filter | Absorptive ND (Schott NG9) |
|
Sensor Housing Dimensions |
Ø30.5 mm x 12.7 mm (1.2" x 0.50") |
| Post Mounting | 8-32 and M4 Combined Tap |
