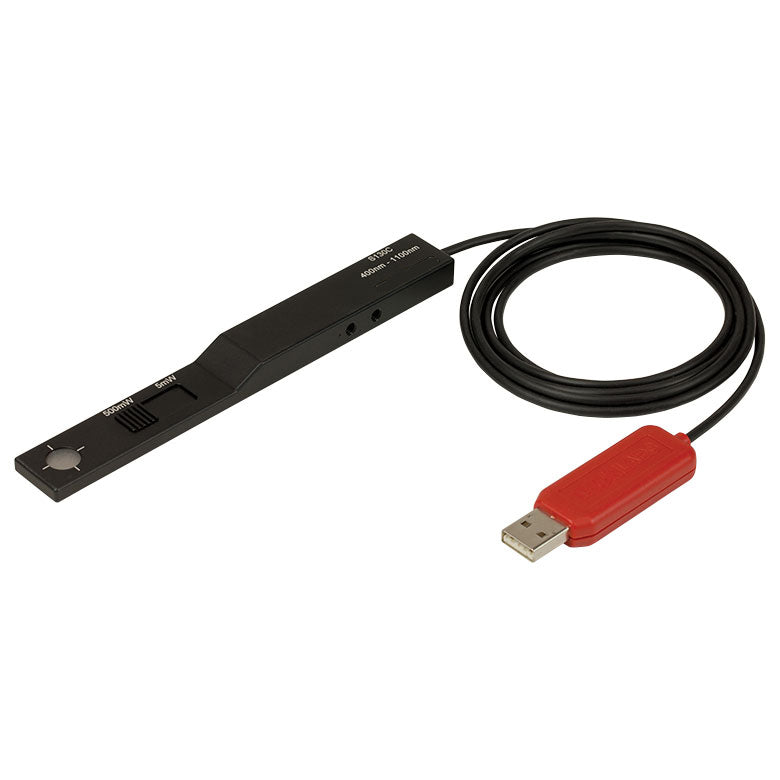

TH-PM16-130 - USB Power Meter, Slim Photodiode Sensor, Si, 400 - 1100 nm, 500 mW Max
TH-PM16-130 - USB Power Meter, Slim Photodiode Sensor, Si, 400 - 1100 nm, 500 mW Max
| Item #a | THPM16-130 |
|---|---|
| Detector Type | Silicon Photodiode |
| Wavelength Range | 400 - 1100 nm |
|
Optical Power Range (with Filter) |
500 pW - 5 mW (Up to 500 mW) |
| Aperture Size | Ø9.5 mm |
| Resolution | <100 pW (10 nW with Filter) |
| ND Filter | Reflective ND (OD2) |
| Housing Dimensions | 150.0 mm x 19.0 mm x 10.0 mm (5.91" x 0.75" x 0.39") 5 mm Thickness on Sensor Side |
| Post Mounting | 8-32 and M4 Taps |
