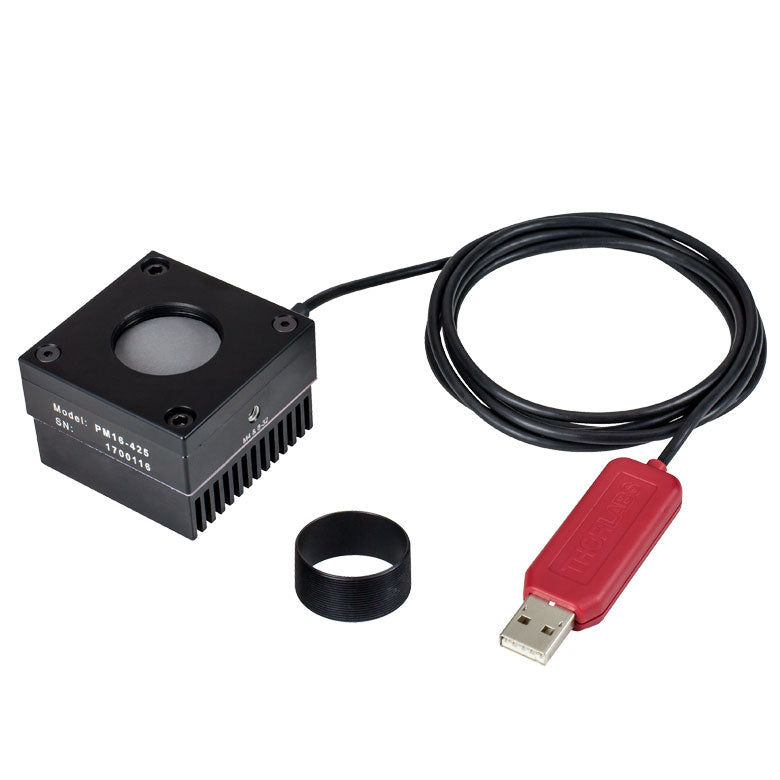

TH-PM16-425 - USB Power Meter, Thermal Sensor, 0.19 - 20 µm, 10 W Max
TH-PM16-425 - USB Power Meter, Thermal Sensor, 0.19 - 20 µm, 10 W Max
Detector Type | Thermal Surface Absorber (Thermopile) |
Wavelength Range | 190 nm - 20 µm |
Optical Power Range | 2 mW - 10 W (20 Wb) |
Max Optical Power Density | 1.5 kW/cm² (Avg.) |
Aperture Size | Ø25.4 mm (Ø1.00") |
Resolution | 100 µW |
Sensor Coating | High Power Broadband |
Sensor Housing Dimensions |
(2.00" x 2.00" x 1.38") |
Post Mounting | Universal 8-32 / M4 Taps (Post Not Included) |
30 mm Cage Mounting | - |
Aperture Threads | Internal SM1 |
Removable Heat Sink | Yes |
Accessories | Externally SM1-Threaded Adapter |
