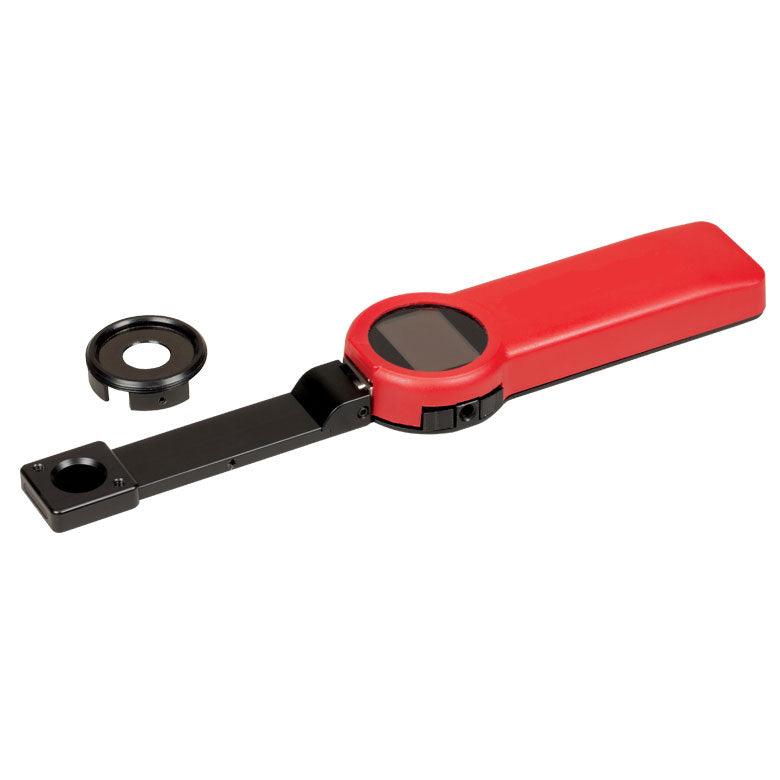

TH-PM160T-HP - Thermal Sensor Power Meter with Bluetooth and USB Operation, 190 nm to 20 µm, 10 mW to 70 W
TH-PM160T-HP - Thermal Sensor Power Meter with Bluetooth and USB Operation, 190 nm to 20 µm, 10 mW to 70 W
- Thermal Sensor for the 190 nm - 20 µm Range
- Measures Optical Powers from 10 mW to 70 W
- Slim 13.0 mm Thick Sensor End
- Includes Externally SM1-Threaded (1.035"-40) Adapter for Compatibility with Fiber Adapters
Included Components
- THPM160T-HP Optical Power Meter
- External SM1 Thread Adapter
- 1.5 m Long USB Cable w/ USB
Type A and Micro B Connectors - Certificate of Calibration
- Quick Reference User Manual
| Wavelength Range | 190 nm - 20 µm |
| Optical Power Measurement Rangeb | 10 mW - 70 W |
| Max Average Power Densityc | 2 kW/cm² |
| Optical Power Resolution | 1 mW |
| Measurement Uncertainty | ±3% (1064 nm) ±5% (250 nm to 17 µm) |

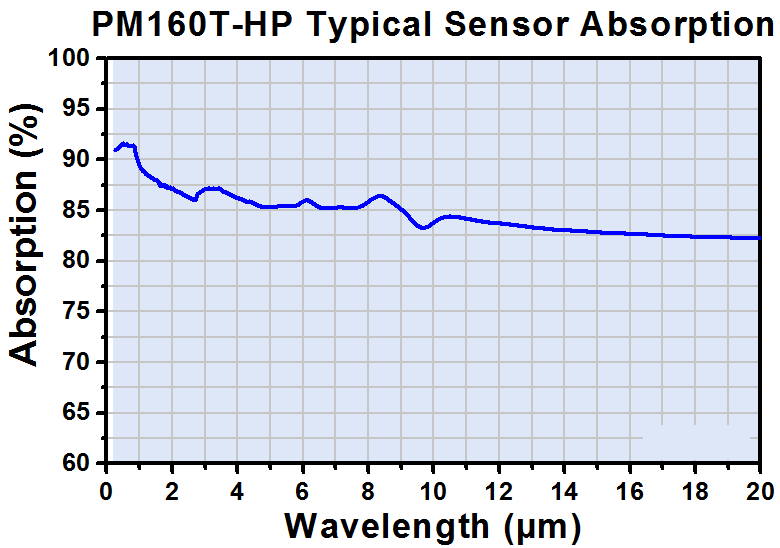

| Sensor Coating | High-Power Broadband |
|
Distance to Sensor from Top Surface of Housing |
4.5 mm |
| Sensor Aperture | Ø25.2 mm (Ø0.99") |
