TH-PM160T - Thermal Sensor Power Meter with Bluetooth and USB Operation, 190 nm to 10.6 µm, 100 µW to 2 W
TH-PM160T - Thermal Sensor Power Meter with Bluetooth and USB Operation, 190 nm to 10.6 µm, 100 µW to 2 W
- Thermal Sensor for the 190 nm - 10.6 µm Range
- Measures Optical Powers from 100 µW to 2 W
- Ultra-Slim 5.5 mm Thick Sensor End
- Includes Detachable SM1-Threaded Adapter with MIR Viewing Target
Included Components

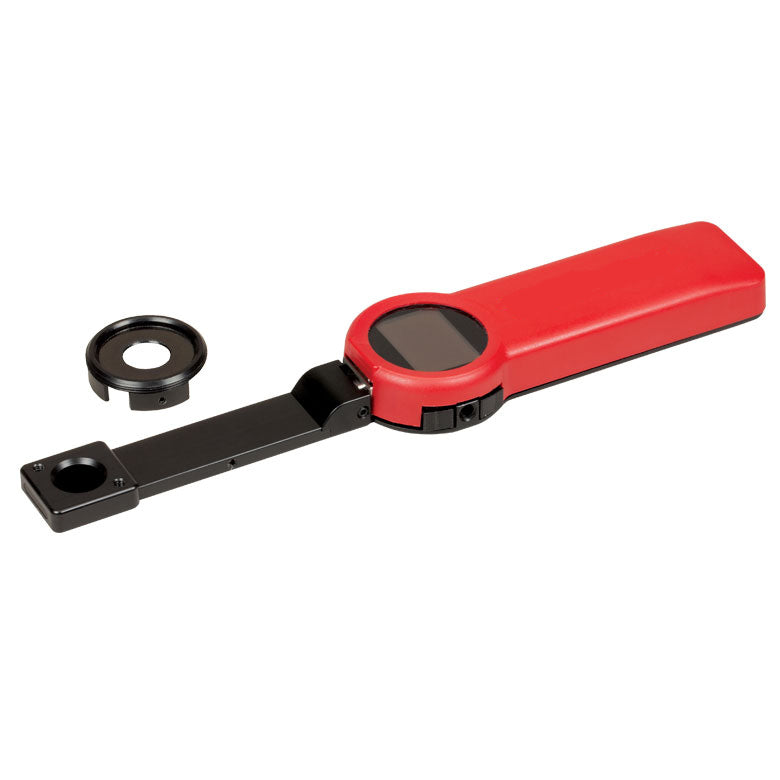

- THPM160T Optical Power Meter
- SM1 Adapter w/ MIR Viewing Target
- 0.9 mm (0.035") Hex Key
- 1.5 m Long USB Cable w/ USB
Type A and Micro B Connectors - Certificate of Calibration
- Quick Reference User Manual
|
Distance to Sensor from Top Surface of Housing |
2.6 mm |
| Sensor Aperture | Ø10 mm (Ø0.39") |

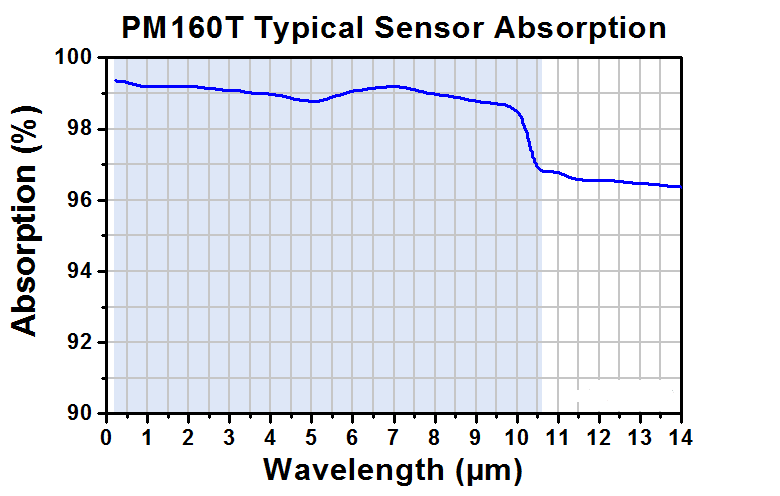

| Wavelength Range | 190 nm - 10.6 µm |
| Optical Power Measurement Range | 100 µW - 2 W |
| Max Average Power Densityb | 500 W/cm² |
| Optical Power Resolution | 10 µW |
| Measurement Uncertainty | ±3% (1064 nm) ±5% (Entire Range) |
| Sensor Coating | Black Broadband |
