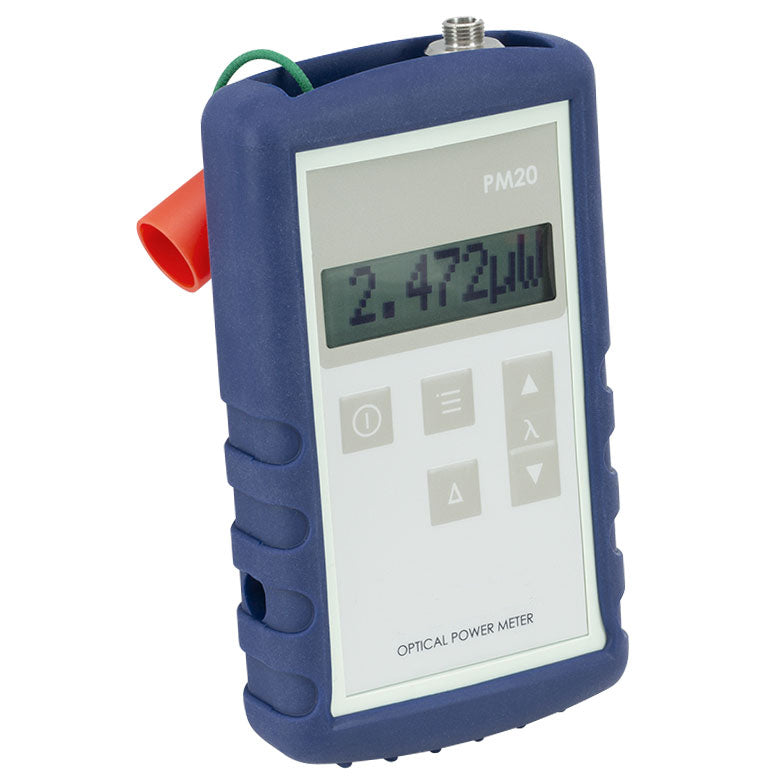

TH-PM20C - Fiber Optic Power Meter, 800 nm - 1700 nm, -60 dBm to +13 dBm (1 nW - 20 mW)
TH-PM20C - Fiber Optic Power Meter, 800 nm - 1700 nm, -60 dBm to +13 dBm (1 nW - 20 mW)
| Power Meter Item # | THPM20C |
|---|---|
| Sensor Specifications | |
| Optical Power Range | -65 dBm to 13 dBm (1 nW - 20 mW) |
| Spectral Range | 800 - 1700 nm |
| Detector Type | InGaAs |
| Sensor Size | Ø2 mm |
| Input Aperture | Ø2 mm |
| Aperture Thread | SM05 Thread (0.535"-40) for Fiber Adapters Fiber Adapter Included for FC Connectors (FC/PC or FC/APC) |
| Measurement Uncertainty | ±0.25 dB |
| Measurement Standard | NIST Traceable |
| Optical Damage Threshold | 50 W/cm² |
| General Console Specifications | |
| Detector Compatibility | - |
| Display Type | Alphanumeric 8-Digits LCD |
| Display Format | 4 Digit Read Out with Units and Symbols |
| Power Units | dBm, dB, nW, µW, mW |
| Resolution | 14 bit |
| Sample Rate | 10 Hz |
| Dimensions (H x W x D) w/ Holster | 125 x 80 x 39 mm (4.9" x 3.1" x 1.5") |
| Weight | 0.2 kg (0.44 lbs) |
| Operating Temperature | 5 °C to 40 °C (Non-Condensing) |
| Storage Temperature | -20 °C to 70 °C |
| Power Management | |
| Battery Operation | Internal NiMH Battery Pack, 150 mAh, 6 V |
| Operating Time | 50+ Hours |
| Shutdown | Manual, Auto 5 Minutes, or Auto 60 Minutes |
| Charger | 3-Hour Battery Charger Included |
| Charger Power Supply | Input: 90 - 264 VAC, 50 - 60 Hz; Output: 12 VDC @ 0.85 A |
