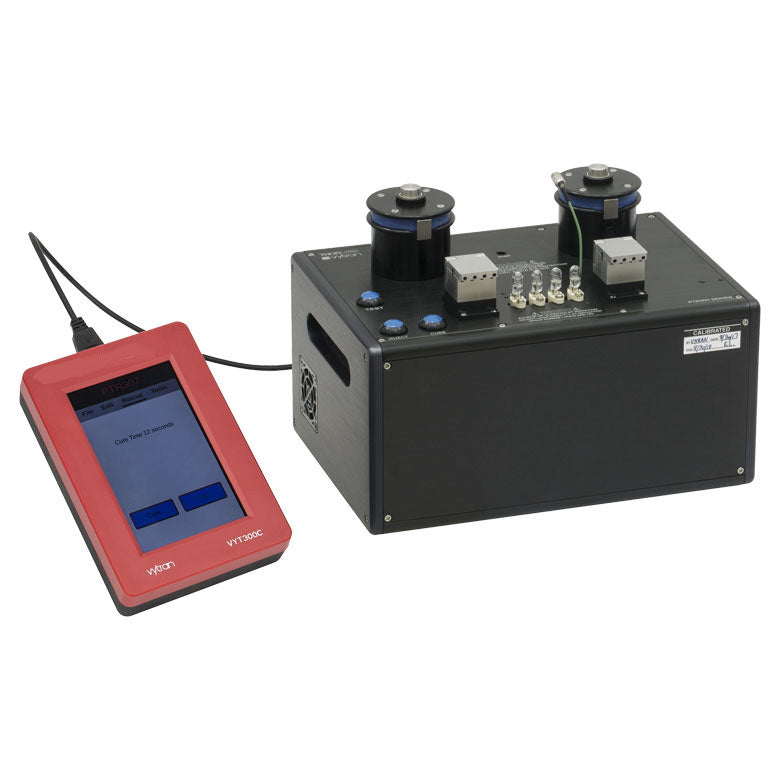

TH-PTR306 - Fiber Recoater with UV Lamps, Linear Proof Tester, and Automatic Recoat Injector, 50 mm Max Fiber Recoat Length, Requires Manual Mold Assembly

Fosco Connect Part No.: THPTR306

  • $ 17,250.00 or



TH-PTR306 - Fiber Recoater with UV Lamps, Linear Proof Tester, and Automatic Recoat Injector, 50 mm Max Fiber Recoat Length, Requires Manual Mold Assembly

Product Drawing

  • Fiber Recoaters with Manual Mold Assembly and Linear Proof Tester
  • Proof Testing up to 20 N (4.5 lbs)
  • Compatible with Mold Assemblies with Coating Diameters of 280 µm, 430 µm, or
    600 µm
  • 50 mm Maximum Recoat Length
  • Automatic and Manual Recoat Injector Configurations Available
  • Ideal for Low-Volume Manufacturing and R&D
  • Program Process Parameters via Included Handset Controller

The PTR306 and PTR306B combine a fiber recoater and linear proof tester into a single unit. These recoaters use a hinged mold assembly ( sold separately) to form the mold cavity for recoating; recoat material is injected through a cross-channel in the mold’s top plate. The integrated linear proof tester can pull the recoated fiber up to a predetermined load (≤20 N) and uses the same fiber holding blocks as the recoater; therefore, both recoating and testing processes can be performed without moving the fiber.

Included

  • Fiber Recoater with Integrated Linear Proof Tester
  • Location-Specific Power Cord
  • Handset Controller

Must be Purchased Separately

  • Mold Assembly (One Required)
  • Fiber Holder Top Inserts (Two Required)
  • Fiber Holder Bottom Inserts (Two Required)
  • High- or Low-Index Recoat Material (One Bottle Required)

Optional

  • Replacement UV Bulb
  • Replacement Injection Tube
  • Replacement Manual Injector (THPTR306B Only)
  • Replacement Syringe Barrel (THPTR306B Only)
  • Replacement Setscrews for Fiber Holding Blocks
