TH-PY004-M - High-Load Pitch and Yaw Platform, M6 Taps

Fosco Connect Part No.: TH-PY004-M

  • $ 1,835.00 or

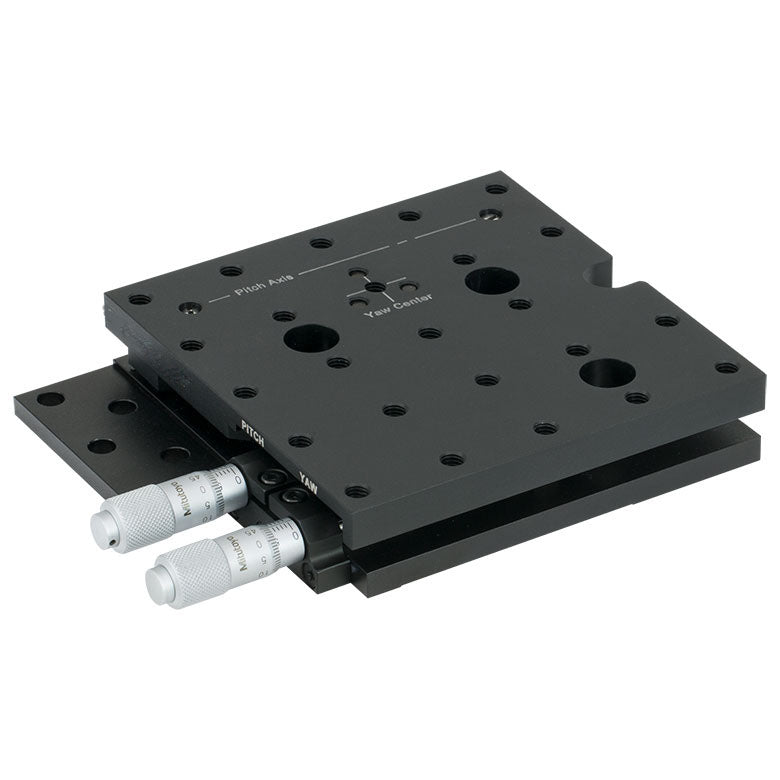

TH-PY004-M - High-Load Pitch and Yaw Platform, M6 Taps

  • Micrometer-Operated Pitch and Yaw Adjustment
  • 1/4"-20 (M6) Tapped Holes with 1.0" (25.0 mm) Spacing
  • Combine with Linear Stages to Add Rotational Adjustment
  • 0.98" (25.0 mm) Deck Height
  • Compact Footprint Measuring 6.42" x 4.53" x 0.98" (163 mm x 115 mm x 25 mm) with Adjusters
  • Black Anodized Aluminum Construction

Product Specification Sheet

Key Specifications
Adjustment Range Pitch: ±2.5°
Yaw: ±4.05°
Minimum Incremental Movementa Pitch: 9 arcsec
Yaw: 16.2 arcsec
Crosstalk <0.05° (3 arcmin)
Horizontal Load Capacity (Max)b 5.0 kg (11.0 lb)
Vertical Load Capacity (Max)c Load Distance
from Top Platform
Max Load
30 mm (1.18") 1.8 kg (4.0 lbs)
50 mm (1.97") 1.1 kg (2.4 lbs)
80 mm (3.15") 0.7 kg (1.5 lbs)
Deck Height 25 mm (0.98")
Bushing Diameter 9.5 mm (0.375")
Weight (Including Drives) 780 g (1.72 lb)
Construction Black Anodized Aluminum
