TH-RP01-M - Ø2" Manual Rotation Stage, Metric

Fosco Connect Part No.: TH-RP01-M

  • $ 185.00 or



TH-RP01-M - Ø2" Manual Rotation Stage, Metric

  • 360° Continuous Rotation
  • Laser-Engraved Graduation Marks at 2° Increments and Witness Line
  • Mounting Platform Height: 0.63"

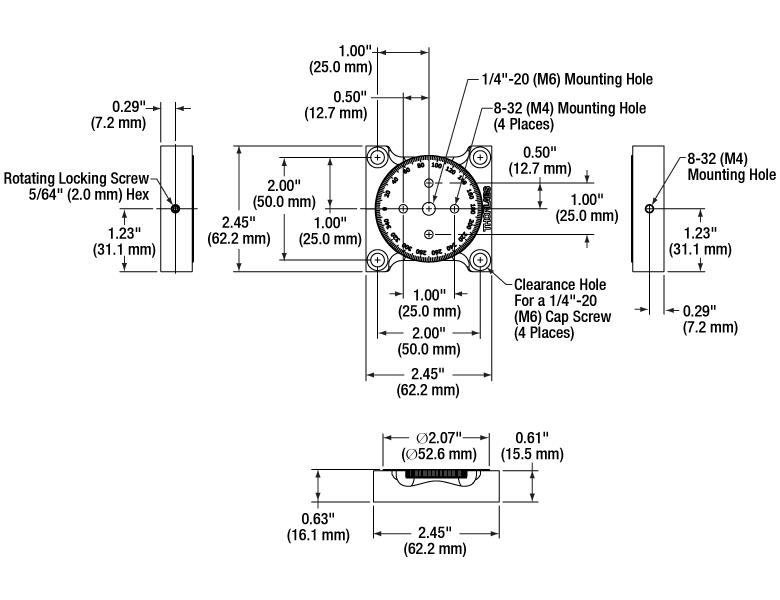

  • Platform Mounting Taps: 8-32 (M4) and 1/4"-20 (M6)
  • Load Capacity:
    • 110 lbs (50 kg) with Stage Mounted on Horizontal Surface
    • 9 lbs (4 kg) with Stage Mounted on Vertical Surface
  • Four 1/4" (M6) Clearance Holes to Mount to Optical Tables or Breadboards

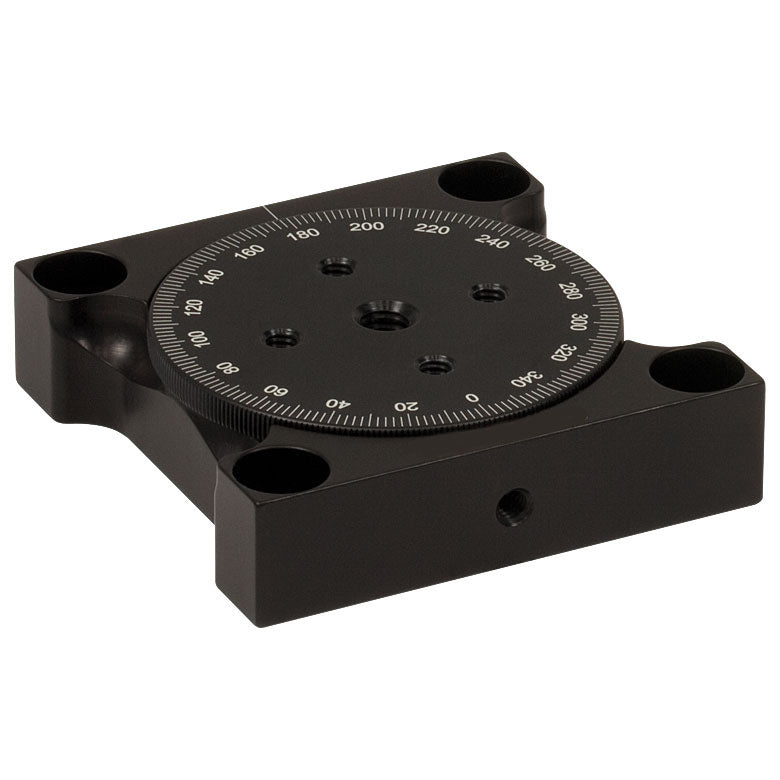

TH-RP01(-M) Manual Rotation Stage has a Ø2" rotating platform and is ideal for larger optomechnical components requiring smooth, backlash-free rotation. The stage offers 360º of continuous rotation with a scale that is engraved in 2° increments along the outer circumference of the rotating platform. It is marked every 20° by a number directly under its corresponding tick mark. Rotation can be locked by tightening the side-located setscrew using a 5/64" (2.0 mm) balldriver or hex key.

Product Specification Sheet
