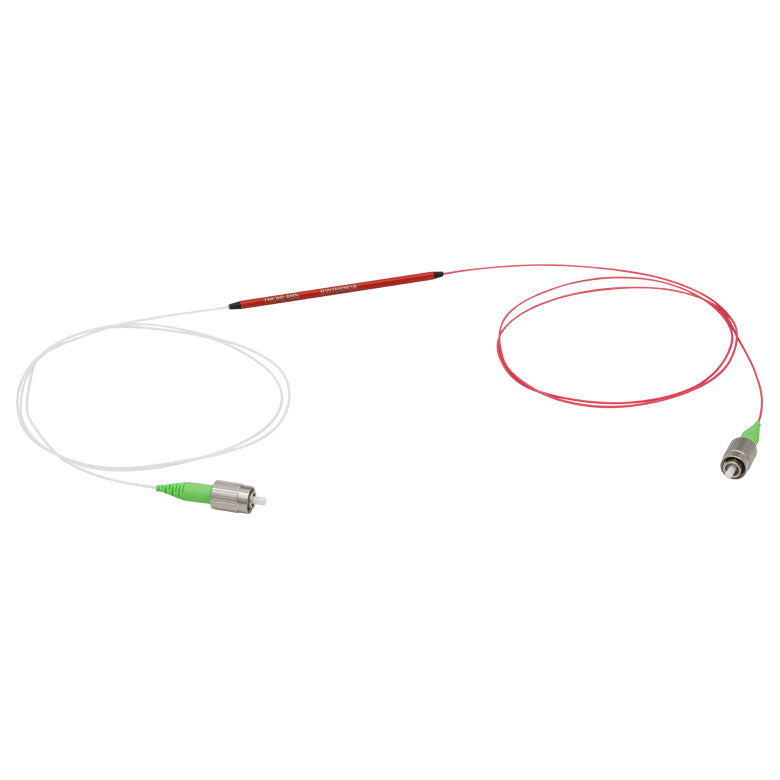

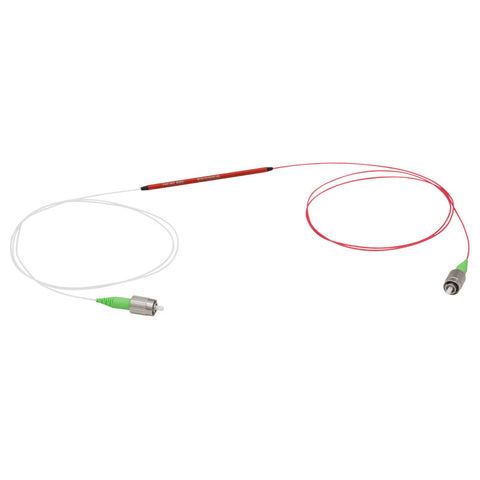

TH-RW1550R3A - In-Line Fiber Partial Reflector, 1550 ± 100 nm, 67:33 (R:T) Ratio, FC/APC Connectors
TH-RW1550R3A - In-Line Fiber Partial Reflector, 1550 ± 100 nm, 67:33 (R:T) Ratio, FC/APC Connectors
Center Wavelength 1550 nm
Bandwidth ±100 nm
Reflectanceb (Click for Plot) 45.0 ± 4.5% (3.5 ± 0.4dB)
Transmissionc (Click for Plot) 22.5 ± 2.5% (6.5 ± 0.5dB)
Reflection Ratiod 67:33
Fiber Typed SMF-28
Termination FC/APC
